CARTE MERE MSI X670E GAMING PLUS WIFI
SKU: MSI-CAR-3715
64 000 DA
Disponibilité: En stock
Résumé
La MSI X670E GAMING PLUS WIFI est la plateforme idéale pour construire un PC gamer haute performance avec les processeurs AMD Ryzen des séries 7000, 8000 et 9000 sur socket AM5. Équipée du chipset AMD X670E, elle débloque le potentiel du PCI-Express 5.0 (x16) pour les cartes graphiques de nouvelle génération et offre un slot M.2 PCIe 5.0 ultra-rapide pour vos SSD. Sa conception d'alimentation robuste (14+2+1 Duet Rail) et ses dissipateurs thermiques étendus garantissent une stabilité optimale, même en cas de lourde charge ou d'overclocking de la mémoire DDR5 jusqu'à 7800+ MHz. Elle intègre une connectivité réseau de pointe avec un port LAN 2.5 GbE et le Wi-Fi 6E pour des connexions sans fil ultra-rapides et stables. Enfin, bénéficiez d'une polyvalence exceptionnelle grâce à ses quatre slots M.2 et son port USB 3.2 Gen 2x2 Type-C (20 Gbps) pour des transferts de données fulgurants. Cette carte mère au format ATX est le choix parfait pour les joueurs exigeants à la recherche d'une durabilité et de performances sans compromis.
Description détaillée
Chipset AMD X670CPUSupports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors
Socket AM5Memory4x DDR5 UDIMM, Maximum Memory Capacity 256GB
Memory Support DDR5 7800+(OC)/ 7600(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MT/s
Max. overclocking frequency:
• 1DPC 1R Max speed up to 7800+ MHz
• 1DPC 2R Max speed up to 6400+ MHz
• 2DPC 1R Max speed up to 6400+ MHz
• 2DPC 2R Max speed up to 5400+ MHz
Supports Dual-Channel mode
Supports non-ECC, un-buffered memory
Supports AMD EXPO™Onboard Graphics1x HDMI™
Support HDMI™ 2.1, maximum resolution of 4K 60Hz*
1x DisplayPort
Support DP 1.4, maximum resolution of 4K 60Hz*
*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.Slot3x PCI-E x16 slot
Supports x16/x1/x4
• Supports x16/x1/x4 (For Ryzen™ 9000/ 7000 Series processors)
• Supports x8/x1/x4 (For Ryzen™ 8700/ 8600/ 8400 Series processors)
• Supports x4/x1/x4 (For Ryzen™ 8500/ 8300 Series processors)
1x PCI-E x1 slot
PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
PCI_E3 Gen PCIe 3.0 supports up to x1 (From Chipset)
PCI_E4 Gen PCIe 4.0 supports up to x4 (From Chipset)
AudioRealtek® ALC897 Codec
7.1-Channel High Definition Audio
Storage4x M.2
M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 22110/2280 devices
M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
4x SATA 6G
• M2_2 supports PCIe 4.0 x2 speed when Ryzen™ 8500/ 8300 Series processor is installedRAID•Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices
•Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices
*RAID 5 configuration is only supported by Ryzen™ 9000 series processors.
*RAID 10 for M.2 NVMe storage devices is only supported by Ryzen™ 9000/7000 series processors.USB4x USB 2.0 (Rear)
4x USB 2.0 (Front)
4x USB 5Gbps Type A (Rear)
4x USB 5Gbps Type A (Front)
3x USB 10Gbps Type A (Rear)
1x USB 10Gbps Type C (Front)
1x USB 20Gbps Type C (Rear)LANRealtek® RTL8125BG 2.5Gbps LANInternal IO1x Power Connector(ATX_PWR)
2x Power Connector(CPU_PWR)
1x CPU Fan
1x Pump Fan
6x System Fan
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x Tuning Controller connector(JDASH)
2x Addressable V2 RGB LED connector (JARGB_V2)
2x RGB LED connector(JRGB)
1x TPM pin header(Support TPM 2.0)
4x USB 2.0 ports
4x USB 5Gbps Type A ports
1x USB 10Gbps Type C portsWIRELESS LAN & BLUETOOTHAMD Wi-Fi 6E
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX
Supports 20MHz, 40MHz, 80MHz,160MHz bandwidth in 2.4GHz/ 5GHz or 6GHz* bands
Supports 802.11 a/ b/ g/ n/ ac/ ax
Supports Bluetooth® 5.3**
* Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 11.

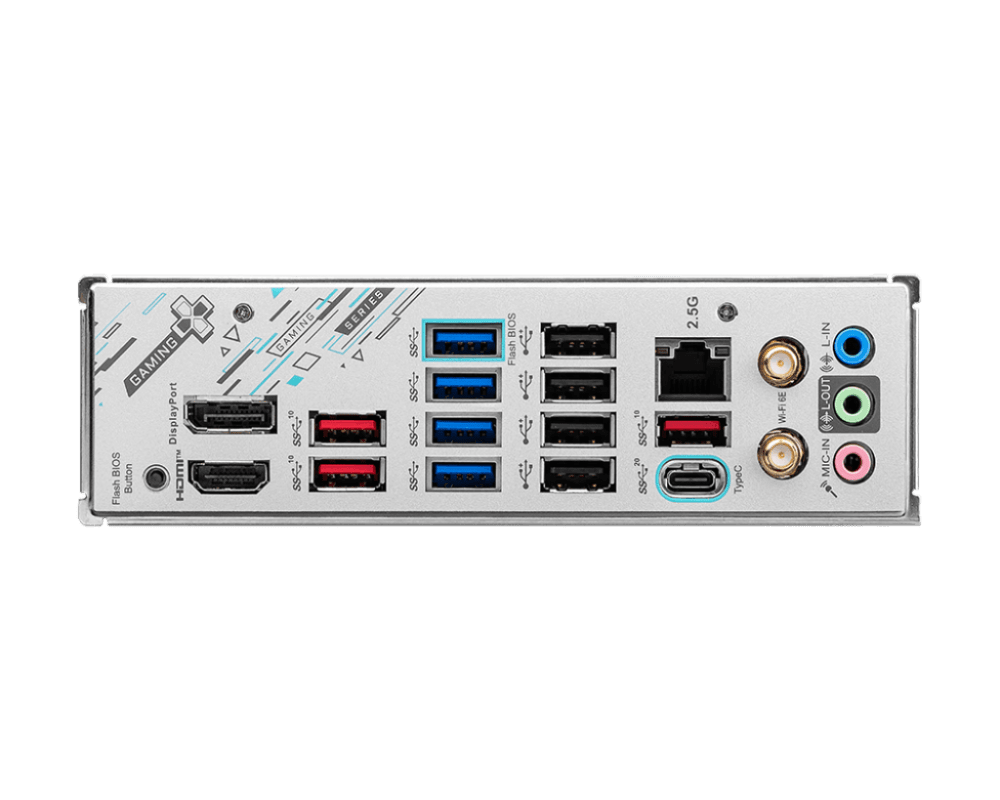

** Bluetooth 5.3 will be ready in Windows 10 build 21H1 and Windows 11.LED FEATURE4x EZ Debug LEDBACK PANEL PORTS
DisplayPort
USB 3.2 Gen 2 10Gbps (Type-A)
USB 3.2 Gen 1 5Gbps (Type-A)
USB 2.0 (Type-A)
2.5G LAN
Flash BIOS Button
HDMI™
USB 3.2 Gen 2x2 20Gbps (Type-C)
Wi-Fi / Bluetooth
Audio Connectors
OPERATING SYSTEMSupport for Windows® 11 64-bit, Windows®
