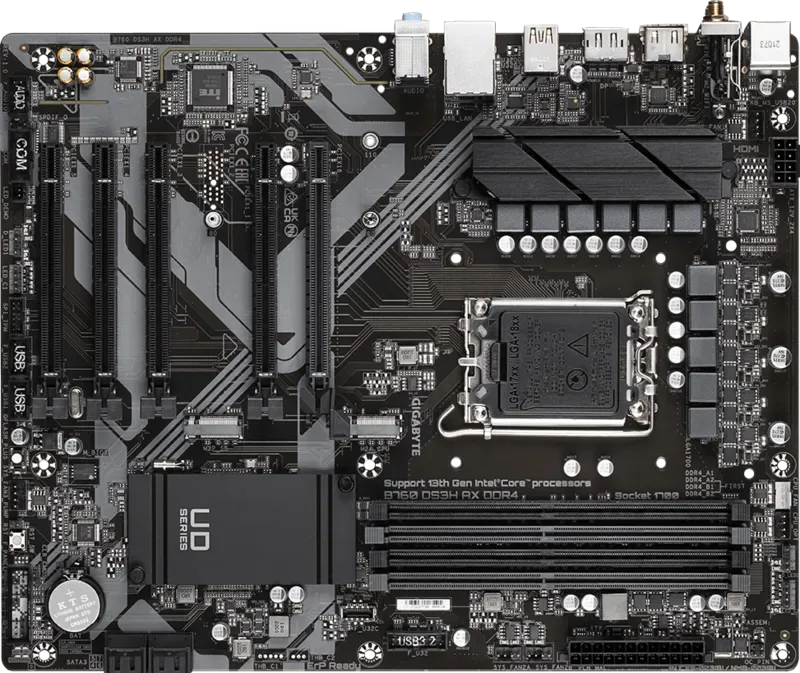

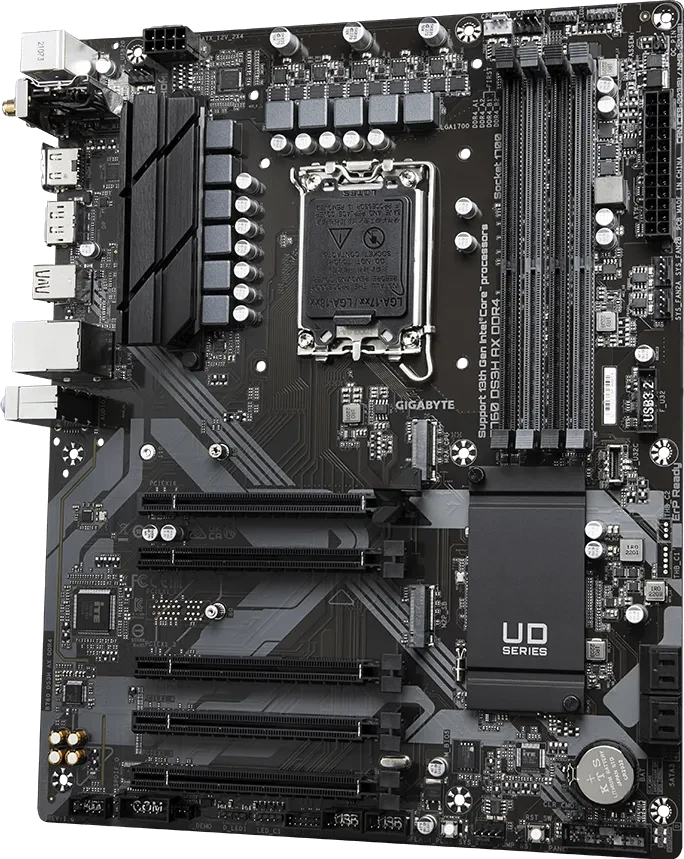

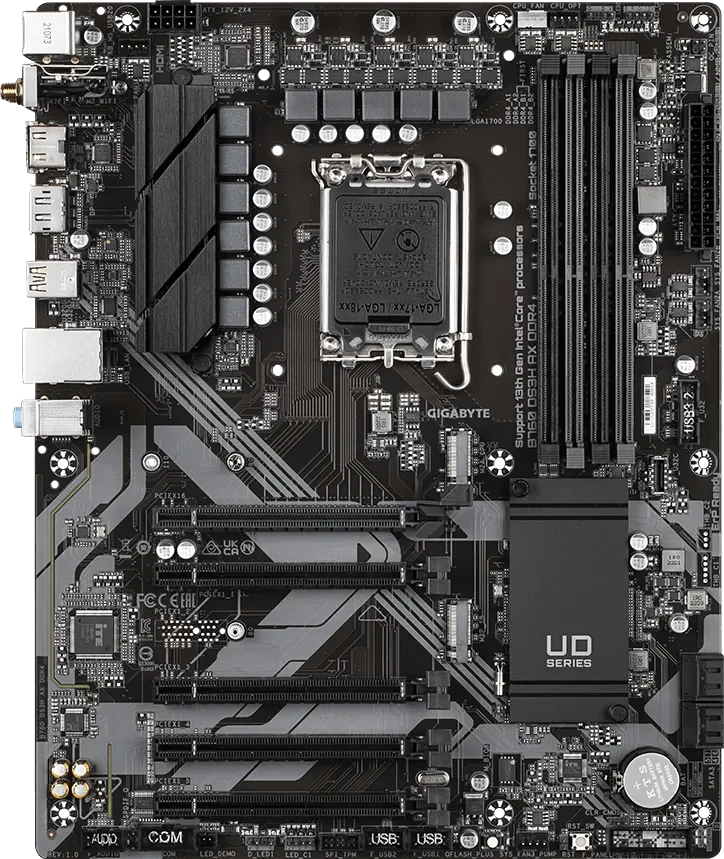

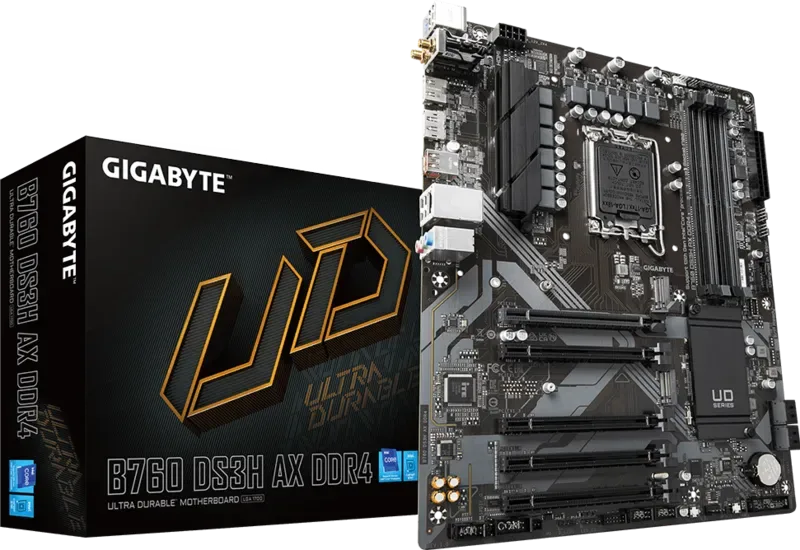

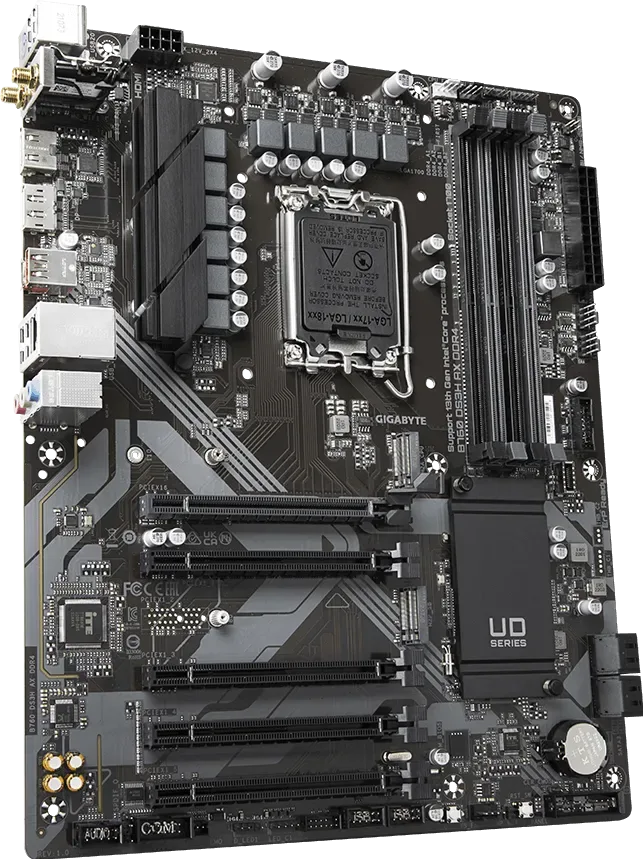

CARTE MERE GIGABYTE B760 DS3H AX LGA1700 DDR4 WIFI 6E

• Processeur

1. LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors

2. L3 cache varies with CPU

(Please refer "CPU Support List" for more information.)

• Chipset

1. Intel® B760 Express Chipset

• Mémoire

1. Support for DDR4 5333(O.C.)/ 5133(O.C.)/ 5000(O.C.)/ 4933(O.C.)/ 4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/ 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3800(O.C.)/ 3733(O.C.)/ 3666(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3333(O.C.)/ 3300(O.C.)/ 3200/ 3000/ 2933/ 2666/ 2400/ 2133 MT/s memory modules

2. 4 x DDR DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory

3. Dual channel memory architecture

4. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)

5. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules

6. Support for Extreme Memory Profile (XMP) memory modules

(Please refer "Memory Support List" for more information.)

• Carte Graphique Intégrée

• Integrated Graphics Processor-Intel® HD Graphics support:

  1. 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
     * Support for HDMI 2.1 version and HDCP 2.3.
     ** Support native HDMI 2.1 TMDS compatible ports.

  2. 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz
     * Support for DisplayPort 1.2 version and HDCP 2.3

  (Graphics specifications may vary depending on CPU support.)

• Audio

1. Realtek® Audio CODEC

2. High Definition Audio

3. 2/4/5.1/7.1-channel
   * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.

4. Support for S/PDIF Out

• Réseau

1. Realtek® GbE LAN chip (1 Gbps/100 Mbps)

• Wireless Communication module

• AMD Wi-Fi 6E RZ608 (MT7921K) (PCB rev. 1.0)

  1. WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands

  2. LUETOOTH 5.2

  3. Support for 11ax 80MHz wireless standard

  Intel® Wi-Fi 6E AX210 (PCB rev. 1.1)

  1. WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands

  2. BLUETOOTH 5.3

  3. Support for 11ax 160MHz wireless standard

  Intel® Wi-Fi 6E AX211 (PCB rev. 1.2)

  1. WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands

  2. BLUETOOTH 5.3

  3. Support for 11ax 160MHz wireless standard

  Realtek® Wi-Fi 6E RTL8852CE (PCB rev. 1.3)

  1. WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands

  2. BLUETOOTH 5.3

  3. Support for 11ax 160MHz wireless standard

  (Actual data rate may vary depending on environment and equipment.)

• Port d'expansion

• CPU:

  1. 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16)
     * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.

  Chipset:

  1. 4 x PCI Express x16 slots, supporting PCIe 3.0 and running at x1
     (PCIEX1_1, PCIEX1_3~PCIEX1_5)

• Interface de Stockage

• CPU:

  1. 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)

  Chipset:

  1. 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)

  2. 4 x SATA 6Gb/s connectors

  RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices

• USB

• Chipset:

  1. 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2x2 support

  2. 1 x USB Type-C® port with USB 3.2 Gen 1 support, available through the internal USB header

  3. 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel

  4. 2 x USB 3.2 Gen 1 ports available through the internal USB header

  5. 4 x USB 2.0/1.1 ports on the back panel

  Chipset+2 USB 2.0 Hubs:

  1. 4 x USB 2.0/1.1 ports available through the internal USB headers

• Connecteurs d'entrées/sorties internes

1. 1 x 24-pin ATX main power connector

2. 1 x 8-pin ATX 12V power connector

3. 1 x CPU fan header

4. 1 x CPU fan/water cooling pump header

5. 3 x system fan headers

6. 1 x system fan/water cooling pump header

7. 2 x addressable LED strip headers

8. 2 x RGB LED strip headers

9. 2 x M.2 Socket 3 connectors

10. 4 x SATA 6Gb/s connectors

11. 1 x front panel header

12. 1 x front panel audio header

13. 1 x S/PDIF Out header

14. 1 x USB Type-C® header, with USB 3.2 Gen 1 support

15. 1 x USB 3.2 Gen 1 header

16. 2 x USB 2.0/1.1 headers

17. 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)

18. 1 x serial port header

19. 1 x Q-Flash Plus button

20. 1 x reset button

21. 1 x reset jumper

22. 1 x Clear CMOS jumper

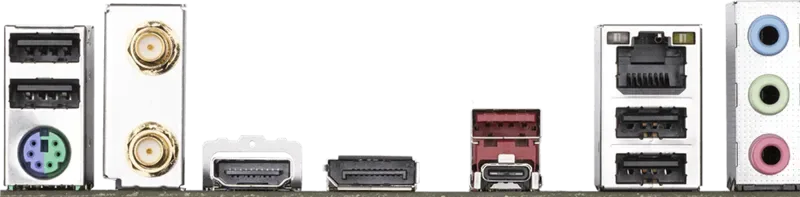

• Connecteur du Panneau Arrière

1. 1 x PS/2 keyboard/mouse port

2. 2 x SMA antenna connectors (2T2R)

3. 1 x USB Type-C® port, with USB 3.2 Gen 2x2 support

4. 1 x USB 3.2 Gen 2 Type-A port (red)

5. 4 x USB 2.0/1.1 ports

6. 1 x HDMI port

7. 1 x DisplayPort

8. 1 x RJ-45 port

9. 3 x audio jacks

• Contrôleur d'Entrée/Sortie

1. iTE® I/O Controller Chip

• Monitorage Matériel

1. Voltage detection

2. Temperature detection

3. Fan speed detection

4. Water cooling flow rate detection

5. Fan fail warning

6. Fan speed control
   * Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.

• BIOS

1. 1 x 128 Mbit flash

2. Use of licensed AMI UEFI BIOS

3. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

• Fonctionnalités Exclusives

1. Support for GIGABYTE Control Center (GCC)
   * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.

2. Support for Q-Flash

3. Support for Q-Flash Plus

• Logiciels Fournis

1. Norton® Internet Security (OEM version)

2. LAN bandwidth management software

• Système d'Exploitation

1. Support for Windows 11 64-bit

2. Support for Windows 10 64-bit

• Dimensions

1. ATX Form Factor; 30.5cm x 24.4cm
