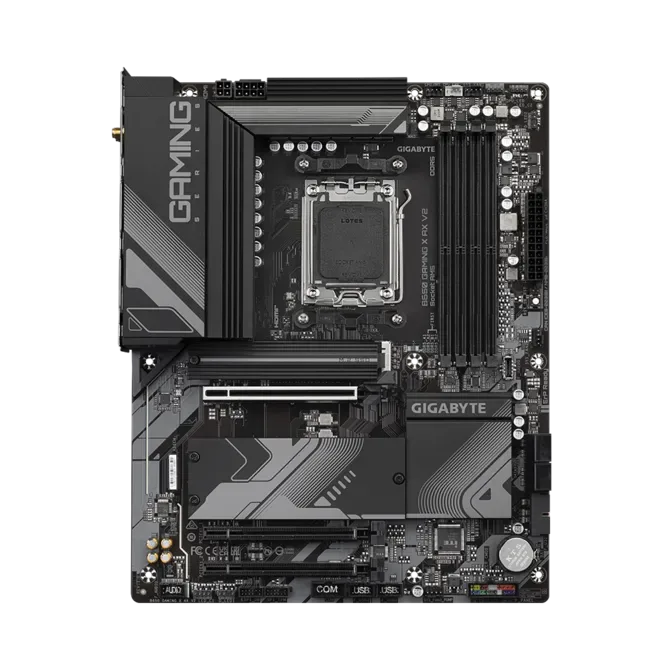

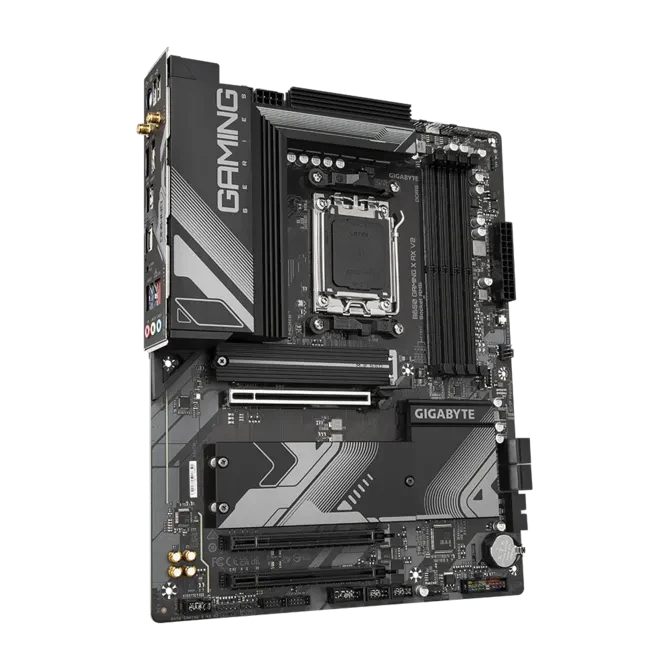

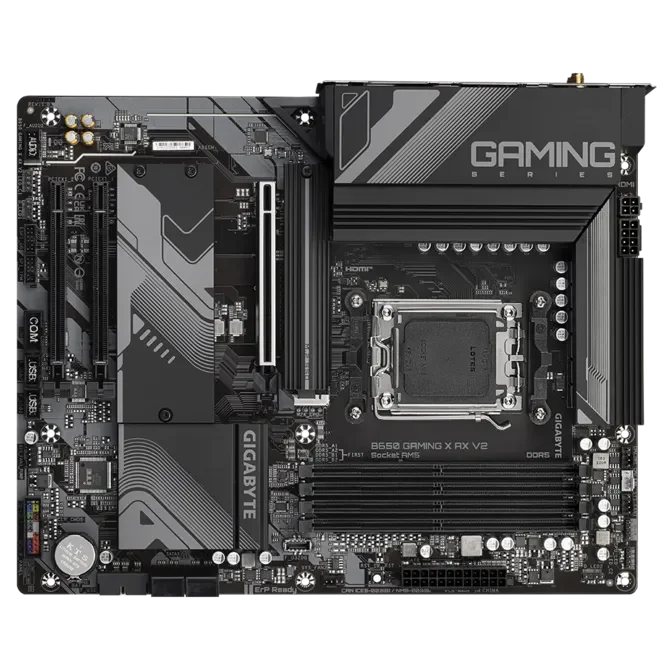

CARTE MERE GIGABYTE B650 GAMING X AX WIFI 6E

• CPU

1. AMD Socket AM5, support for: AMD Ryzen™ 7000 / Ryzen™ 8000 / Ryzen™ 9000 Series Processors

(Please refer "CPU Support List" for more information.)

• Chipset

1. AMD B650

• Memory

1. Support for DDR5 8000(OC)/ 7800(OC)/ 7600(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5600(OC)/ 5200/ 4800/ 4400 MT/s memory modules

2. 4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory

3. Dual channel memory architecture

4. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules

5. Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules

(The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.)

• Onboard Graphics

• Integrated Graphics Processor with AMD Radeon™ Graphics support:

  1. 1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz
     * Support for DisplayPort 1.4 version and HDR.

  2. 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
     * Support for HDMI 2.1 version and HDCP 2.3.
     ** Support native HDMI 2.1 TMDS compatible ports.

  (Graphics specifications may vary depending on CPU support.)

• Audio

1. Realtek® Audio CODEC

2. High Definition Audio

3. 2/4/5.1/7.1-channel
   * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.

• LAN

1. Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)

• Wireless Communication module

• Realtek® Wi-Fi 6E RTL8852CE (PCB rev. 1.0)

  1. WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands

  2. BLUETOOTH 5.3

  3. Support for 11ax 160MHz wireless standard

  AMD Wi-Fi 6E RZ616 (MT7922A22M) (PCB rev. 1.1)

  1. WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands

  2. BLUETOOTH 5.2

  3. Support for 11ax 160MHz wireless standard

  Intel® Wi-Fi 6E AX210 (PCB rev. 1.2)

  1. WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands

  2. BLUETOOTH 5.3

  3. Support for 11ax 160MHz wireless standard

  (Actual data rate may vary depending on environment and equipment.)

• Expansion Slots

• 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:

  1. AMD Ryzen™ 7000 Series Processors/ Ryzen™ 9000 Series Processors support PCIe 4.0 x16 mode

  2. AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode

  3. AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode
     * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.

  Chipset:

  1. 2 x PCI Express x16 slots, supporting PCIe 3.0 and running at x1 (PCIEX1_1/2)

• Storage Interface

• 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs:

  1. AMD Ryzen™ 7000 Series Processors/ Ryzen™ 9000 Series Processors support PCIe 5.0 x4/x2 SSDs

  2. AMD Ryzen™ 8000 Series-Phoenix 1/Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs

  1 x M.2 connector (M2B_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs:

  1. AMD Ryzen™ 7000 Series Processors/ Ryzen™ 9000 Series Processors support PCIe 4.0 x4/x2 SSDs

  2. AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs

  3. AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x2 SSDs

  1 x M.2 connector (M2C_SB), integrated in the Chipset, supporting Socket 3, M key, type 25110/22110/2580/2280 PCIe 4.0 x4/x2 SSDs
  4 x SATA 6Gb/s connectors
  RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices
  RAID 0, RAID 1, and RAID 10 support for SATA storage devices

• USB

• CPU:

  1. 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2 support

  2. 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel

  3. 1 x USB 3.2 Gen 1 port on the back panel

  CPU + USB 2.0 Hub:

  1. 3 x USB 2.0/1.1 ports on the back panel

  Chipset:

  1. 1 x USB Type-C® port with USB 3.2 Gen 2x2 support, available through the internal USB header

  2. 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)

  3. 4 x USB 2.0/1.1 ports available through the internal USB headers

• Internal I/O Connectors

1. 1 x 24-pin ATX main power connector

2. 1 x 8-pin ATX 12V power connector

3. 1 x 4-pin ATX 12V power connector

4. 1 x CPU fan header

5. 1 x CPU fan/water cooling pump header

6. 2 x system fan headers

7. 1 x system fan/water cooling pump header

8. 2 x addressable LED strip headers

9. 2 x RGB LED strip headers

10. 1 x CPU cooler LED strip/RGB LED strip header

11. 3 x M.2 Socket 3 connectors

12. 4 x SATA 6Gb/s connectors

13. 1 x front panel header

14. 1 x front panel audio header

15. 1 x USB Type-C® header, with USB 3.2 Gen 2x2 support

16. 1 x USB 3.2 Gen 1 header

17. 2 x USB 2.0/1.1 headers

18. 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)

19. 1 x serial port header

20. 1 x reset button

21. 1 x reset jumper

22. 1 x Clear CMOS jumper

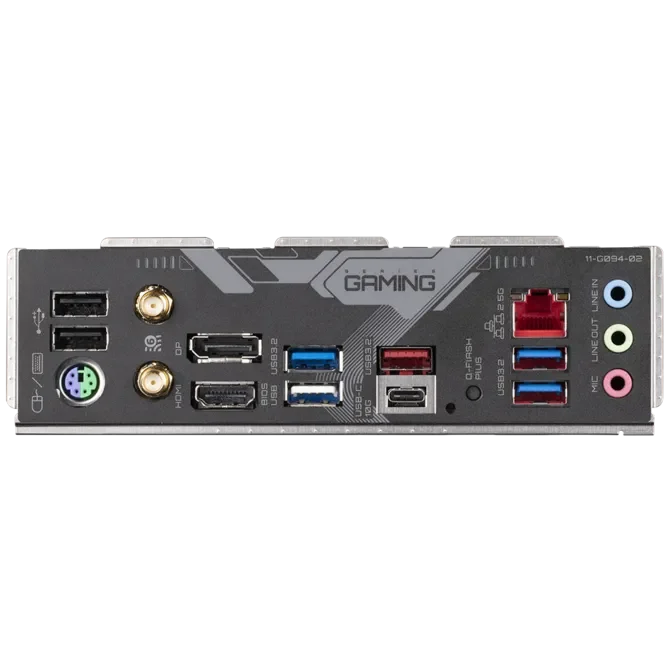

• Back Panel Connectors

1. 1 x PS/2 keyboard/mouse port

2. 2 x SMA antenna connectors (2T2R)

3. 1 x Q-Flash Plus button

4. 1 x DisplayPort

5. 1 x HDMI port

6. 1 x USB Type-C® port, with USB 3.2 Gen 2 support

7. 1 x USB 3.2 Gen 2 Type-A port (red)

8. 3 x USB 3.2 Gen 1 ports

9. 3 x USB 2.0/1.1 ports

10. 1 x RJ-45 port

11. 3 x audio jacks

• I/O Controller

1. iTE® I/O Controller Chip

• H/W Monitoring

1. Voltage detection

2. Temperature detection

3. Fan speed detection

4. Water cooling flow rate detection

5. Fan fail warning

6. Fan speed control
   * Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.

• BIOS

1. 1 x 256 Mbit flash

2. Use of licensed AMI UEFI BIOS

3. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

• Unique Features

1. Support for GIGABYTE Control Center (GCC)
   * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.

2. Support for Q-Flash

3. Support for Q-Flash Plus

• Bundled Software

1. Norton® Internet Security (OEM version)

2. LAN bandwidth management software

• Operating System

1. Support for Windows 11 64-bit

2. Support for Windows 10 64-bit

• Form Factor

1. ATX Form Factor; 30.5cm x 24.4cm
