Carte mèreGIGABYTE

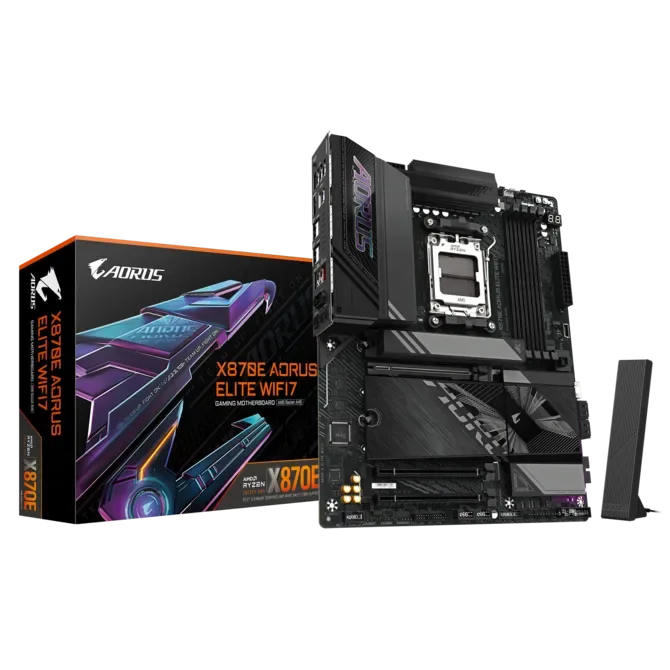

CARTE MERE AORUS X870E ELITE WIFI 7
SKU: GIG-CAR-5527
95 000 DA
Disponibilité: En stock
Résumé

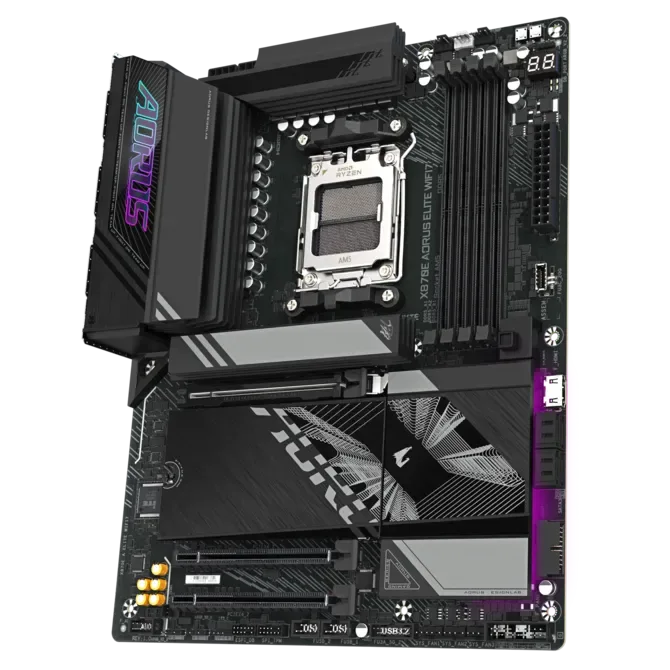

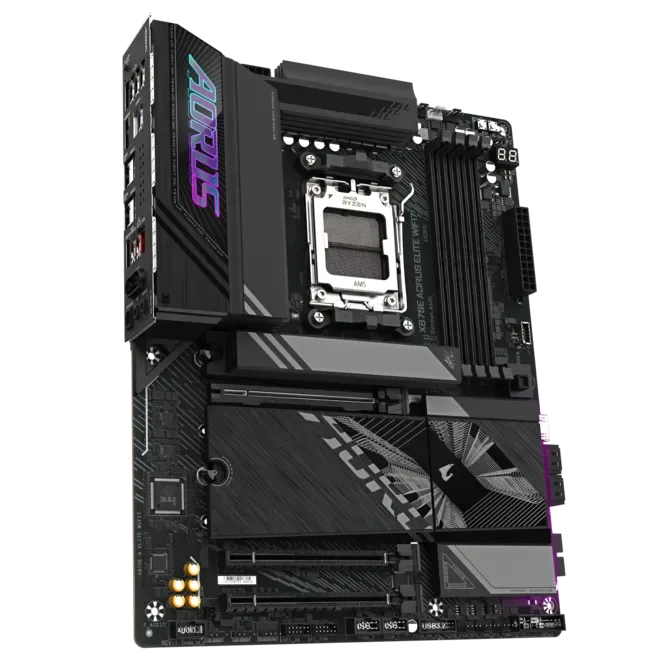

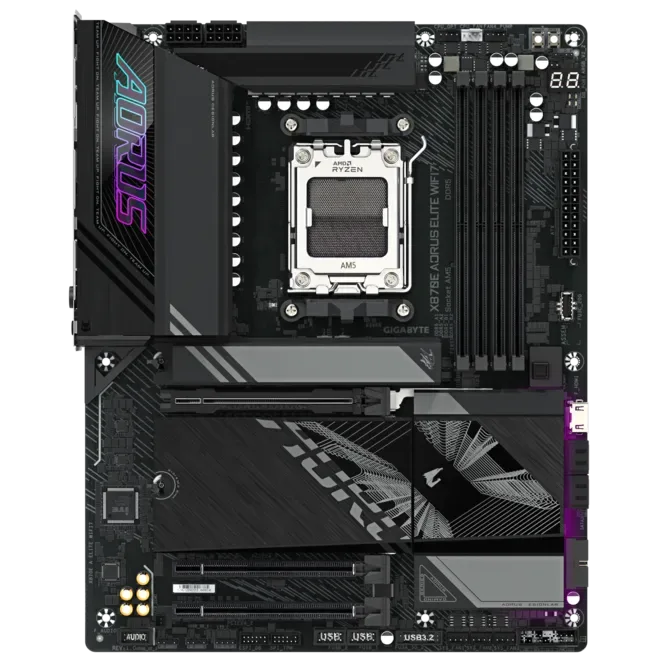

La X870E AORUS ELITE WIFI7 est une carte mère de nouvelle génération conçue pour tirer le meilleur des processeurs AMD Ryzen récents. Elle combine performances avancées, connectivité ultra-moderne et fiabilité, pour répondre aux besoins des gamers et des utilisateurs exigeants. Équipée du chipset X870E, elle prend en charge la mémoire DDR5 haute fréquence ainsi que le PCIe 5.0, offrant des vitesses exceptionnelles pour les cartes graphiques et les SSD nouvelle génération. Son architecture d’alimentation renforcée garantit une stabilité optimale, même lors d’utilisations intensives ou d’overclocking. Grâce au Wi-Fi 7 intégré et aux solutions réseau rapides, elle assure une connexion fluide et ultra-rapide. Elle propose également une large gamme de ports USB haute vitesse et des options de stockage avancées pour une expérience complète. Avec son design robuste et élégant signé AORUS, accompagné d’un éclairage RGB personnalisable, la X870E AORUS ELITE WIFI7 s’impose comme un choix idéal pour construire une configuration performante, évolutive et prête pour les technologies du futur.
Description détaillée
Processeur
AMD Socket AM5, support for:
AMD Ryzen™ 9000 Series Processors/
AMD Ryzen™ 8000 Series Processors/
AMD Ryzen™ 7000 Series Processors
(Go to GIGABYTE's website for the latest CPU support list.)
Chipset
AMD X870E
Mémoire
Support for DDR5 8200(OC) / 8000(OC) / 7800(OC) / 7600(OC) / 7200(OC) / 7000(OC) / 6800(OC) / 6666(OC) / 6600(OC) / 6400(OC) /6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 MT/s memory modules
4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory
Dual channel memory architecture
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules
(The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.)
Carte Graphique Intégrée
Integrated Graphics Processor with AMD Radeon™ Graphics support+ASMedia USB4® Controller:
- 2 x USB4® USB Type-C® ports, supporting USB4 and DisplayPort video outputs and a maximum resolution of 3840x2160@240 Hz* Support for DisplayPort 1.4 version and HDR.
Integrated Graphics Processor with AMD Radeon™ Graphics support:
- 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 HzSupport for HDMI 2.1 version, HDCP 2.3, and HDR.
* Support native HDMI 2.1 TMDS compatible ports.
- 1 x front HDMI port, supporting a maximum resolution of 1920x1080@30 Hz* Support for HDMI 1.4 version
(Graphics specifications may vary depending on CPU support.)
Support for up to quad-display at the same time
Audio
Realtek® ALC1220 CODEC
* The back panel line out jack supports DSD audio.
High Definition Audio
2/4/5.1/7.1-channel* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
Support for S/PDIF Out
Réseau
Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Wireless Communication module
MediaTek Wi-Fi 7 MT7925 (PCB rev. 1.0)
- WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
- BLUETOOTH 5.4
- Support for 11be 160MHz wireless standard
Realtek® Wi-Fi 7 RTL8922AE (PCB rev. 1.1/1.2)
- WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
- BLUETOOTH 5.4
- Support for 11be 160MHz wireless standard
(Actual data rate may vary depending on environment and equipment.)Wi-Fi 7 features require Windows 11 SV3 to function properly. (There is no support driver for Windows 10.)
*Wi-Fi 7 channels on 6 GHz band availability depends on individual country's regulations.
*** Bluetooth version may change with updates. See the Wi-Fi chip vendor's website for details.
Port d'expansion
1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:
AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x16 mode* The M2B_CPU and M2C_CPU connectors share bandwidth with the PCIEX16 slot.
When the M2B_CPU or M2C_CPU connector is populated, the PCIEX16 slot operates at up to x8 mode.
AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode
AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode
(The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.)
Chipset:
- 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4_1)
- 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x4 (PCIEX4_2)
Interface de Stockage
1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs:
AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs
AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs
AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs
2 x M.2 connectors (M2B_CPU, M2C_CPU), integrated in the CPU, supporting Socket 3, M key, type 22110/2280 SSDs:
AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs* The M2B_CPU and M2C_CPU connectors become unavailable when an AMD Ryzen™ 8000 Series-Phoenix 1/Phoenix 2 processor is used.
1 x M.2 connector (M2D_SB), integrated in the Chipset, supporting Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSDs
4 x SATA 6Gb/s connectors RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices* RAID 5 is only available on AMD Ryzen™ 9000 Series Processors.
RAID 0, RAID 1, and RAID 10 support for SATA storage devices
USB
CPU+ASMedia USB4® controller:
- 2 x USB4® USB Type-C® ports on the back panel
CPU:
- 1 x USB 3.2 Gen 1 port on the back panel
Chipset:
- 1 x USB Type-C® port with USB 3.2 Gen 2x2 support, available through the internal USB header
- 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
- 7 x USB 3.2 Gen 1 ports (3 ports on the back panel, 4 ports available through the internal USB headers)
- 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
Connecteurs d'entrées/sorties internes
1 x 24-pin ATX main power connector
2 x 8-pin ATX 12V power connectors
1 x CPU fan header
1 x CPU fan/water cooling pump header
3 x system fan headers
1 x system fan/water cooling pump header
3 x addressable RGB Gen2 LED strip headers
1 x RGB LED strip header
4 x M.2 Socket 3 connectors
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB Type-C® header, with USB 3.2 Gen 2x2 support
2 x USB 3.2 Gen 1 headers
2 x USB 2.0/1.1 headers
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
1 x HDMI port (Note)
1 x power button
1 x reset button
1 x reset jumper
1 x Clear CMOS jumper

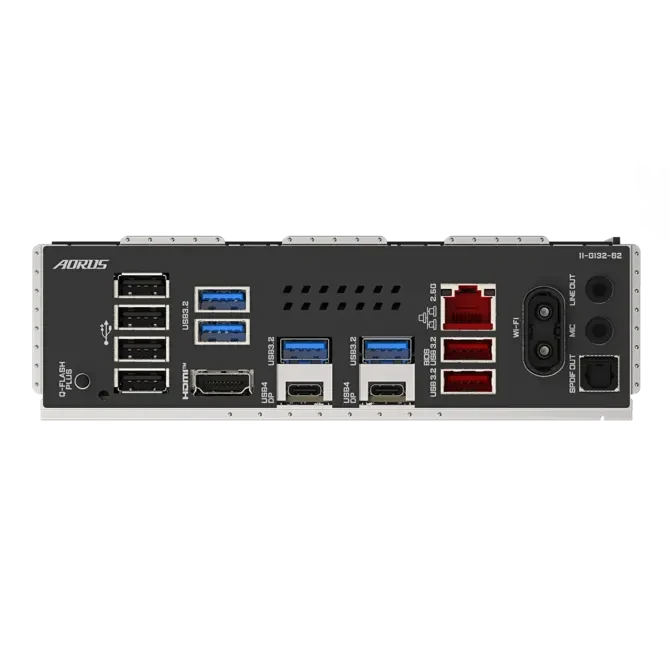

Connecteur du Panneau Arrière
1 x Q-Flash Plus button
4 x USB 2.0/1.1 ports
4 x USB 3.2 Gen 1 ports
1 x HDMI port (Note)
2 x USB4® USB Type-C® ports (DisplayPort (Note))
1 x RJ-45 port
2 x USB 3.2 Gen 2 Type-A ports (red)

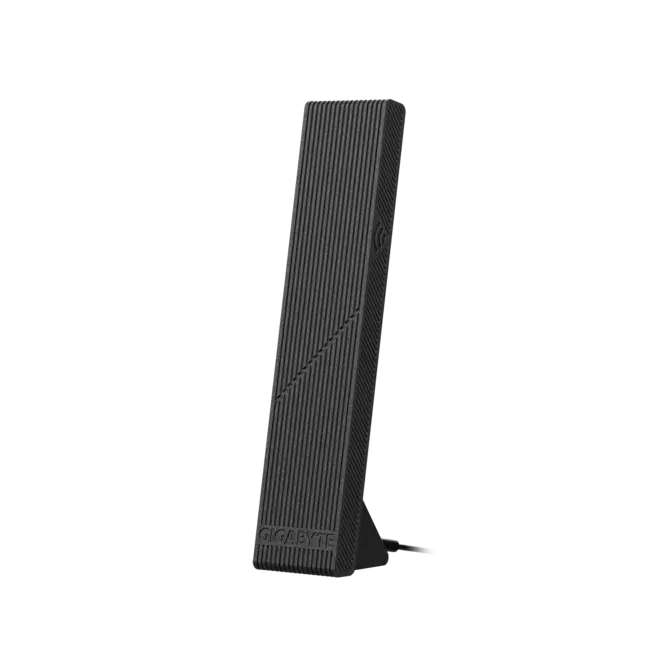

2 x antenna connectors (2T2R)
2 x audio jacks
1 x optical S/PDIF Out connector
Contrôleur d'Entrée/Sortie
iTE® I/O Controller Chip
Monitorage Matériel
Voltage detection
Temperature detection
Fan speed detection
Water cooling flow rate detection
Fan fail warning
Fan speed control* Whether the fan (pump) speed control function is supported will depend on the fan(pump) you install.
Noise detection
BIOS
1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Fonctionnalités Exclusives
Support for GIGABYTE Control Center (GCC)
* Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
Support for Q-Flash
Support for Q-Flash Plus
Support Smart Backup
Logiciels Fournis
Norton® Internet Security (OEM version)
LAN bandwidth management software
Système d'Exploitation
Support for Windows 11 64-bit
Dimensions
ATX Form Factor; 30.5cm x 24.4cm
