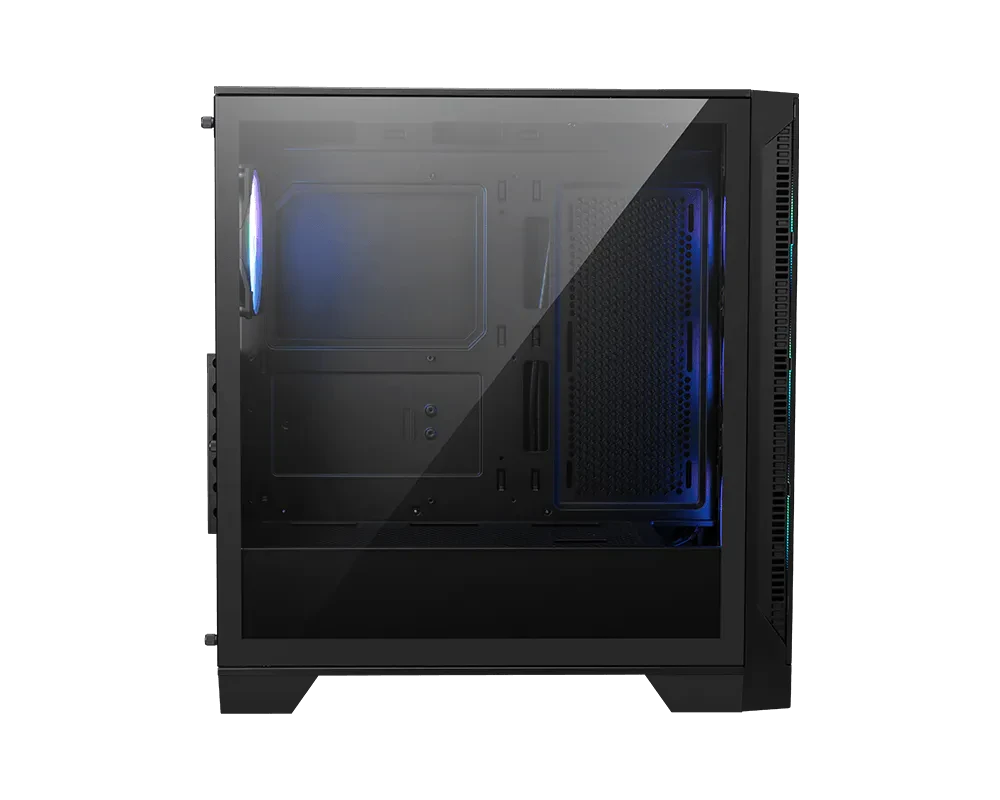

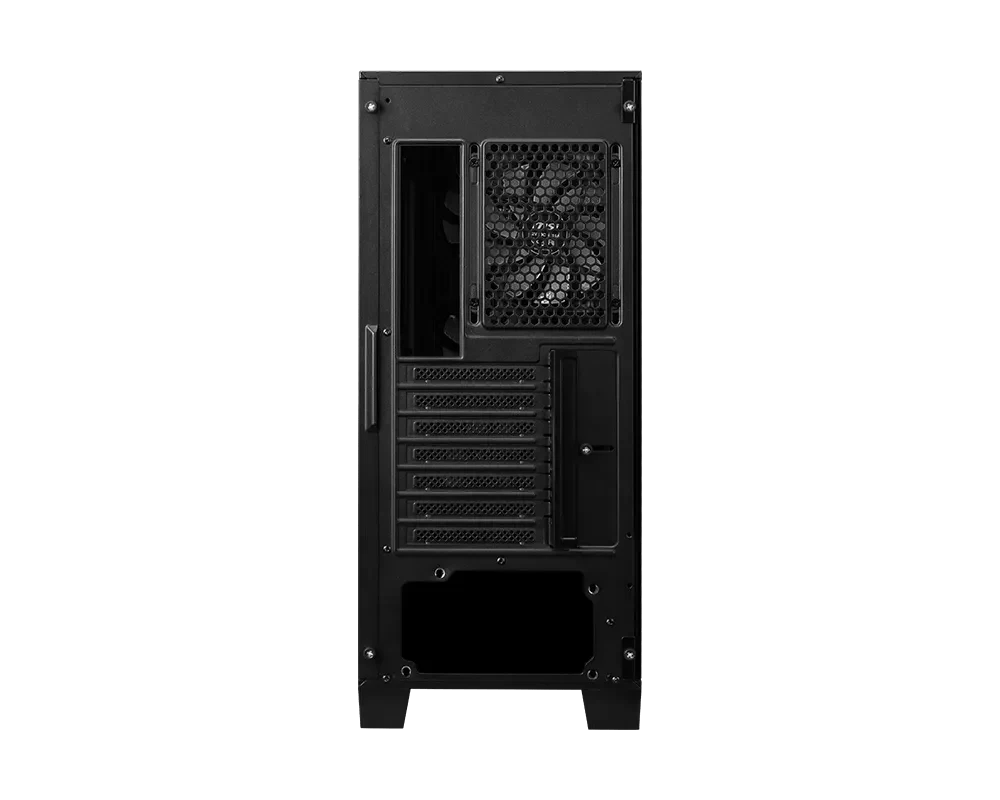

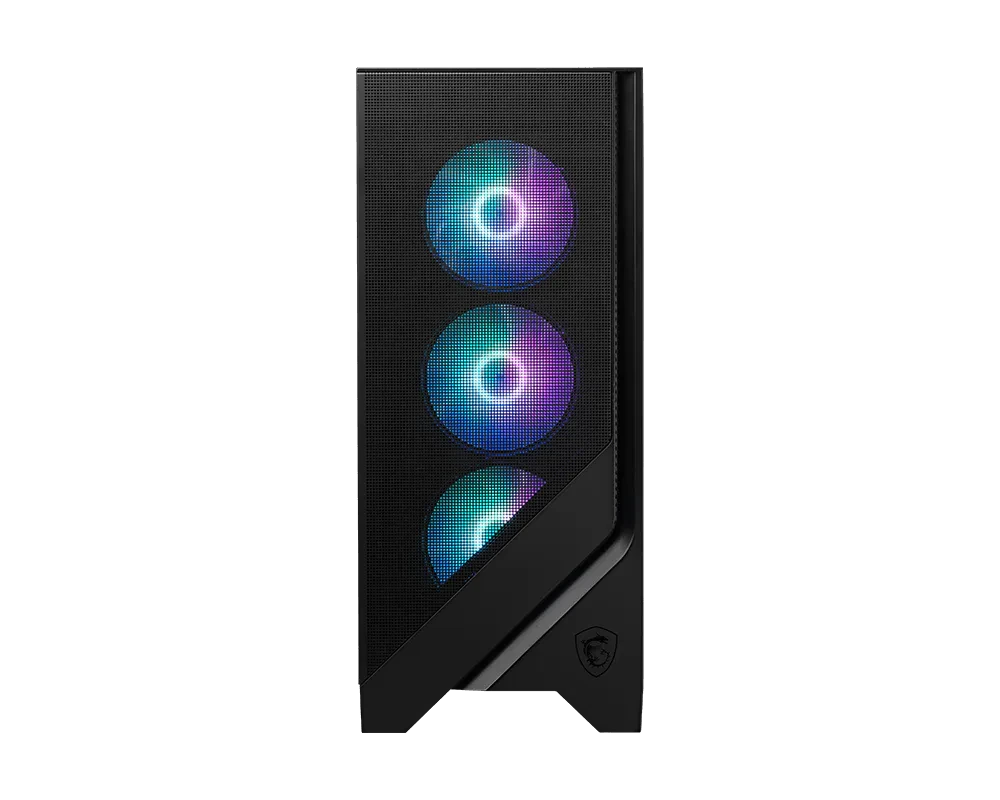

BOITIER MSI 320R AIRFLOW

Product Name

MAG FORGE 320R AIRFLOW

Case Form Factor

Mid Tower

Motherboard Form Factor Support

ATX / Micro-ATX / Mini-ITX

I/O Ports

2 x USB 3.2 Gen 1 Type-A
1 x Audio-out
1 x Mic-in
1 x LED Switch

Drive Mount Support

1 x 2.5"
2 x 2.5" / 3.5"

Expansion Slots

Maximum GPU Length

390 mm / 15.35 inches

Maximum GPU Height

150 mm / 5.91 inches

Maximum CPU Cooler Height

160 mm / 6.29 inches

Power Supply Support

ATX

Maximum PSU Length

200 mm / 7.87 inches (without 2.5"/3.5" HDD tray installation)

Fan Size Support

Front: 3 x 120 mm / 2 x 140 mm
Top: 3 x 120 mm / 2 x 140 mm
Rear: 1 x 120 mm
Side: 2 x 120 mm
PSU Shroud: 2 x 120 mm

Pre-installed Fan Size

Front: 3 x 120 mm
Rear: 1 x 120 mm

Pre-installed Fan Type

Front: 3 x ARGB Fan
Rear: 1 x ARGB Fan

Radiator Size Support

Front: 120 / 140 / 240 mm
Top: 120 / 240 / 280 / 360 mm
Rear: 120 mm

Dimensions (DxWxH)

472.5 x 210 x 498 mm / 18.60 x 8.26 x 19.60 inches

Net Weight

7.05 kg / 15.54lbs

Gross Weight

8.35 kg / 18.41lbs
