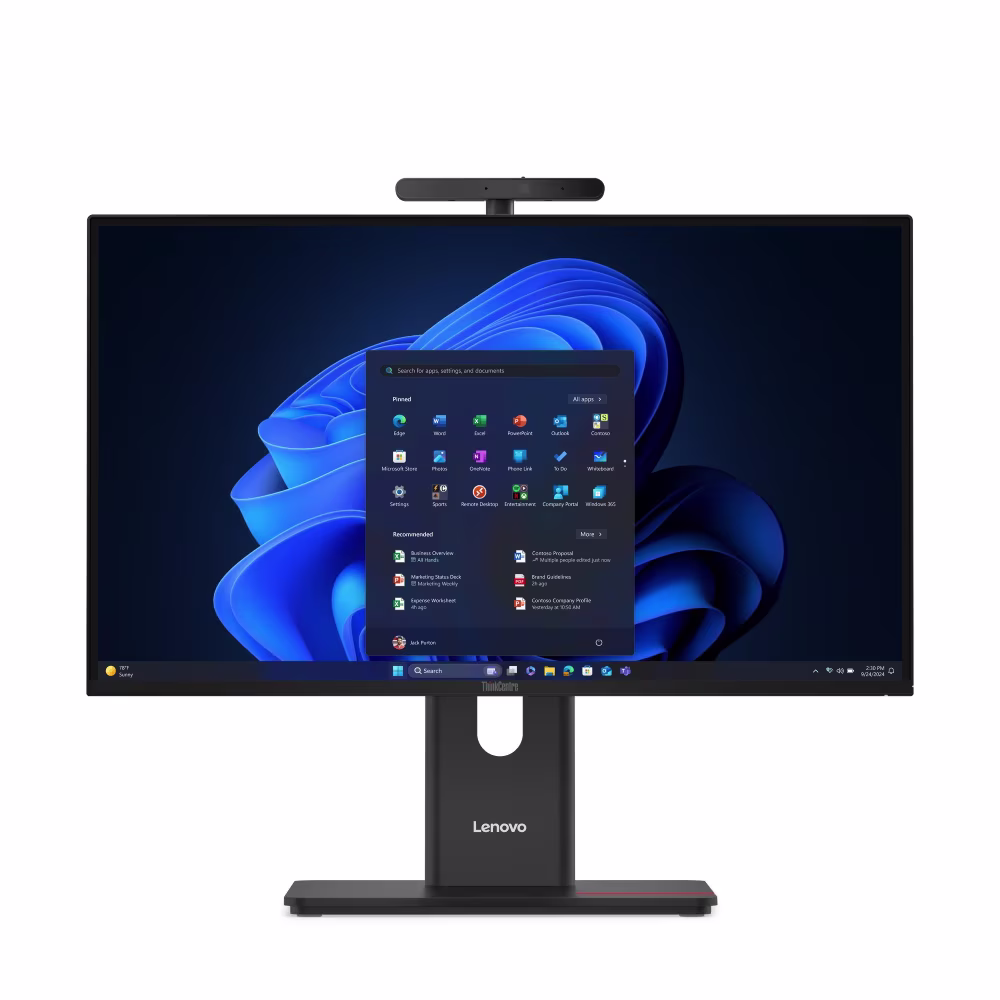

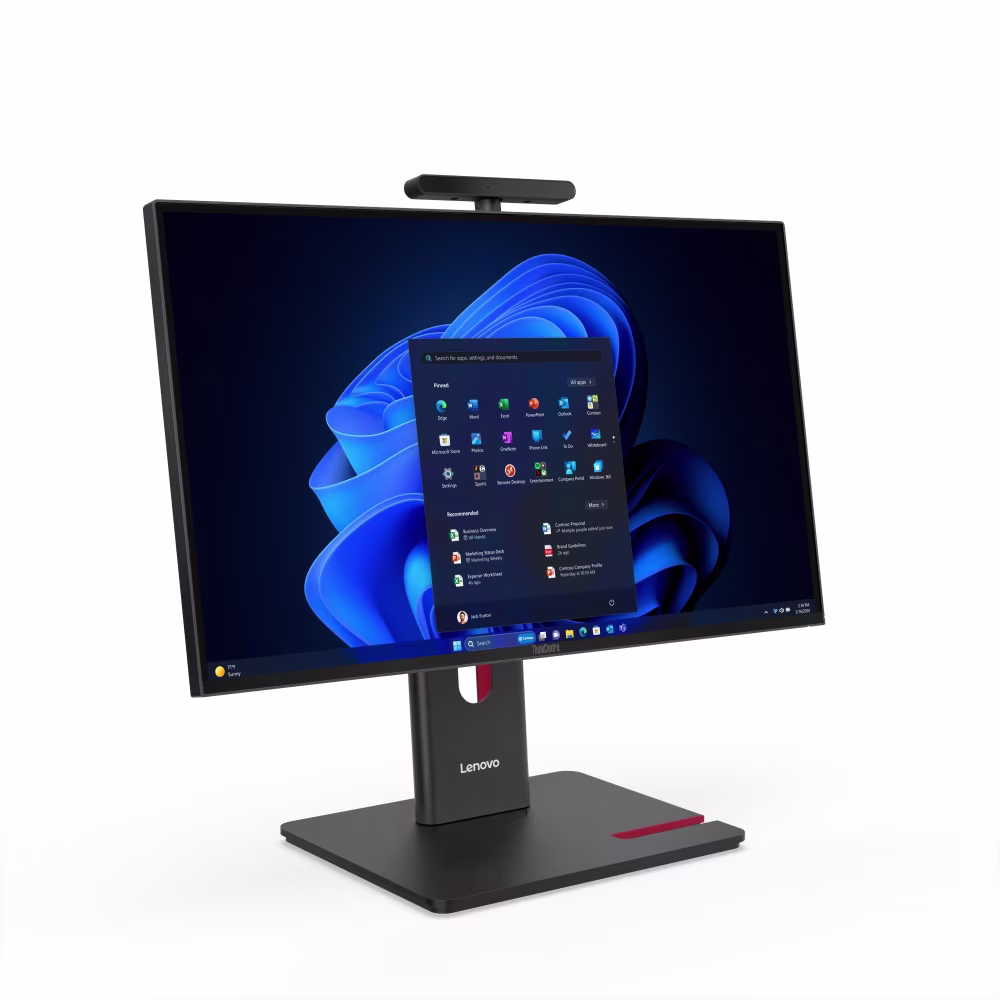

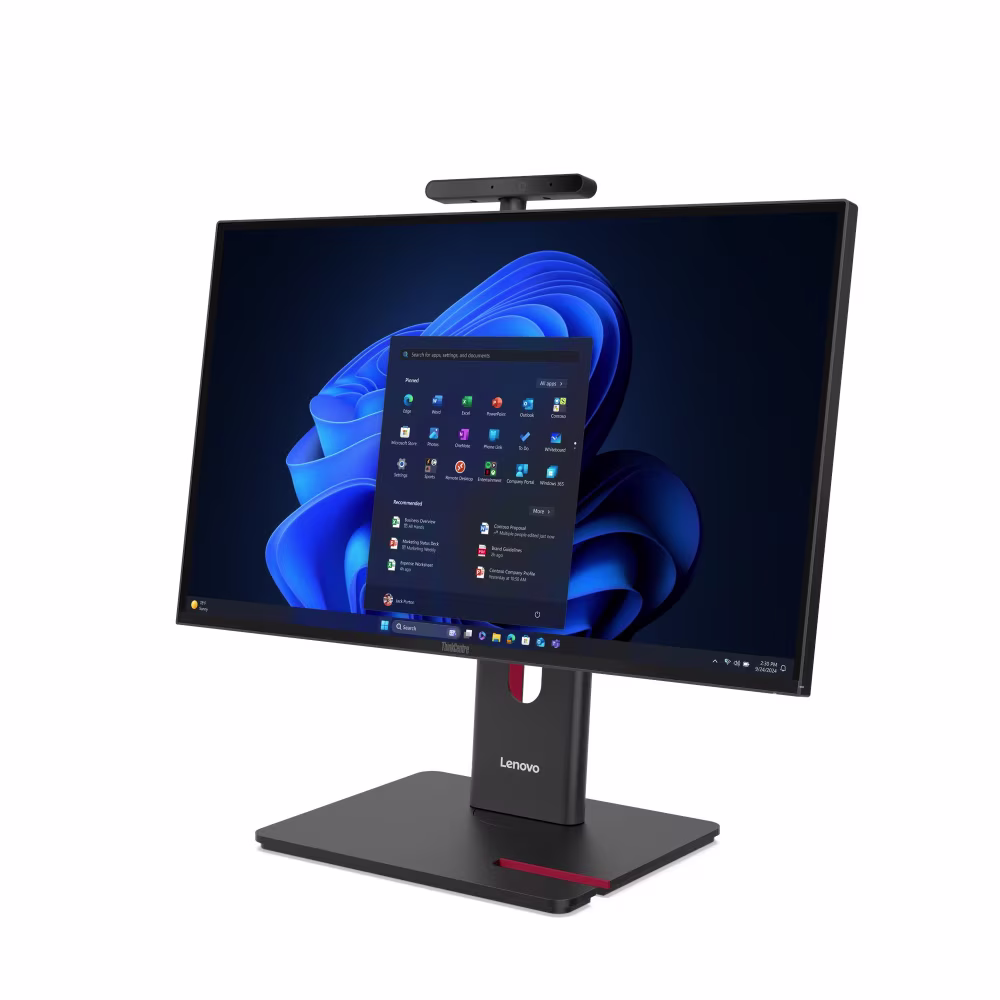

ALL IN ONE THINKCENTER M90A GEN 6 ULTRA7 265 16GB DDR5 512SSD

PERFORMANCEProcessor

Intel Core™ Ultra 7 265, 20C (8P + 12E) / 20T, Max Turbo up to 5.3GHz, 30MB Intel® Smart Cache

AI PC Category

AI PC

NPU

Integrated Intel® AI Boost, up to 13 TOPS

Graphics

Integrated Intel® Graphics

Chipset

Intel® Q870 Chipset

Memory

1x 16GB SODIMM DDR5-5600

Memory Slots

Two DDR5 SODIMM slots, dual-channel capable

Max Memory

Up to 64GB DDR5-5600

Storage

512GB SSD M.2 2280 PCIe® 4.0x4 NVMe® Opal 2.0

Max Storage Support

Up to three drives, 3x M.2 SSD • M.2 SSD up to 2TB each

RAID Preset

None

Card Reader

3-in-1 Card Reader

Optical

None

Audio Chip

High Definition (HD) Audio, Realtek® ALC233NL-VB2-CG codec

Speakers

3Wx2

Camera

5.0MP + IR Hybrid

Microphone

2x, Array

Power Supply

180W 90%

DESIGNDisplay

23.8" FHD (1920x1080) IPS Anti-glare 250nits, 120Hz, 99% sRGB, hardware low blue light, flicker free, eyesafe, non-touch

Touchscreen

None

Keyboard

EOS Wireless Keyboard, Black, French

Mouse

Wireless EOS Mouse, black

Optional Bay

None

Expansion Slots

Four M.2 slots (one for WLAN, three for SSD / discrete NPU)

Case Color

Black

Stand

Full Function Monitor Stand

Mounting

VESA mount

Pen

Pen Not Supported

Form Factor

AIO (23.8 inches)

Dimensions (WxDxH)

539.6 x 222.21 x 393.01-543.01 mm (21.24 x 8.75 x 15.47-21.38 inches)

Weight

8.96 kg (19.75 lbs, maximum configuration)

CONNECTIVITYWLAN + Bluetooth

Intel® Wi-Fi® 6 AX203, 802.11ax 2x2 + BT5.2

WWAN

WWAN Not Supported

Ethernet

Integrated 100/1000M

Rear Ports

• 2x USB-A (USB 10Gbps / USB 3.2 Gen 2)

• 2x USB-A (USB 5Gbps / USB 3.2 Gen 1), one supports Smart Power On

• 1x HDMI® (HDMI® in 1.4 / HDMI® out 2.1 TMDS combo port)

• 1x DisplayPort™ 1.4a (HBR2)

• 1x Ethernet (RJ-45)

Right Ports

• 1x USB-A (USB 10Gbps / USB 3.2 Gen 2)

• 1x USB-C® (Thunderbolt™ 4 / USB4® 40Gbps), with USB PD 3.0 up to 65W output, DisplayPort™ 2.1, Always On

• 1x USB-C® (USB 10Gbps / USB 3.2 Gen 2), support data transfer and 5V@3A charging

• 1x headphone / microphone combo jack (3.5mm)

Optional Right Ports (configured)

1x card reader

Optional Ports (configured)

None

SECURITY & PRIVACYSecurity Chip

Discrete TPM 2.0, TCG certified, FIPS 140-2 certified

Fingerprint Reader

No fingerprint reader

Physical Locks

Kensington Security Slot™, 3 x 7 mm

Chassis Intrusion Switch

None

Additional Security

None

Other Security

ThinkShutter camera cover (camera models)

MANAGEABILITYSystem Management

Non-vPro®

SERVICEBase Warranty

1-year, Onsite

Included Upgrade

3Y Onsite upgrade from 1Y Onsite

CERTIFICATIONSGreen Certifications

• ErP Lot 3

• GREENGUARD®

• RoHS compliant

Other Certifications

• Anti-dust

• Healthcare compliance: Part of IEC 60601-1 / IEC 60601-1-2

• IP54-compliant (front face, for non-touch models)

• Eyesafe® Certified 2.0

• SGS Performance Tested certification: Super Quiet@Hi-Performance Grade 1

• TÜV Rheinland® Flicker Free

• TÜV Rheinland® Low Blue Light (Hardware Solution)

Mil-Spec Test

MIL-STD-810H military test passed (Low Pressure [Altitude], High Temperature, Low Temperature, Temperature Shock, Humidity, Sand and Dust, Vibration, Shock, Fungus, Solar Radiation, Contamination by Fluids, Salt Fog)

SOFTWAREOperating System

None

Bundled Software

None

ACCESSORIESBundled Accessories

None

MODEL INFORMATIONModel

13AV0008FM

Machine Type

13AV

Region

MEA

Country/Region

Africa-French-Portuguese

TopSeller

Yes

EAN / UPC / JAN

0198158674799
