ALIMENTATION ROG STRIX 850W Platinum

Intel Form Factor

ATX12V

PFC Type

Active PFC

ATX Standard

ATX 3.1

80 PLUS Efficiency

80Plus Platinum

Protection Features

OPP/OVP/UVP/SCP/OCP/OTP

Hazardous Materials

ROHS

AC Input Range

100-240Vac

DC Output Voltage

+3.3V +5V +12V -12V +5Vsb

Maximum Load

25A 25A 70.8A 0.3A 3A

Combined Load

130W 130W 850W 3.6W 15W

Total Output

850W

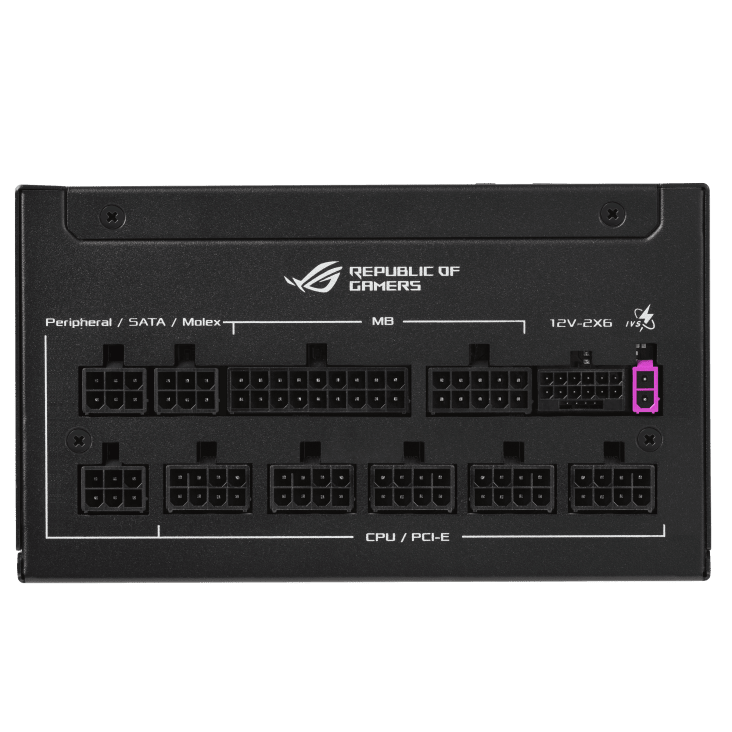

Cable Connectors

MB 24/20-pin x 1
CPU 4+4-pin x 2
PCI-E 16-pin x 1 (both PSU & component side)
PCI-E 6+2-pin x 3
SATA x 6
PERIPHERAL x 3

Package Contents

Power Cord x 1
Motherboard Power Cable x 1 (610mm)
CPU Cable x 2 (1000mm)
PCI-E Gen 5.1 (16-pin-to-16-pin) Cable x 1 (750mm)
PCI-E (8-pin-to-6+2pin) Cable x 3 (750mm)
SATA 1-to-3 Cable x 2 (400+120+120mm)
Peripheral 1-to-3 Cabel x 1 (400+150+150mm)
ROG Strix DIY sticker x 1
User Manual x 1

Dimensions

160 x 150 x 86 mm

Weight

1.78 kg (single PSU)

Cybenetics Noise Level Certification

A

AURA SYNC

No

MTBF

>120,000 hrs @ 25°C
