ALIMENTATION ROG LOKI SFX-L 1000W Platinum

Intel Form Factor

SFX-L

PFC Type

Active PFC

ATX Standard

ATX 3.1

80 PLUS Efficiency

80Plus Platinum

Cybenetics Efficiency

Platinum (230V) ; Platinum (115V)

Protection Features

OPP/OVP/UVP/SCP/OCP/OTP

Hazardous Materials

ROHS

AC Input Range

100-240Vac

DC Output Voltage

+3.3V +5V +12V -12V +5Vsb

Maximum Load

20A 20A 83.3A 0.8A 2.5A

Combined Load

110W 110W 1000W 9.6W 12.5W

Total Output

1000W

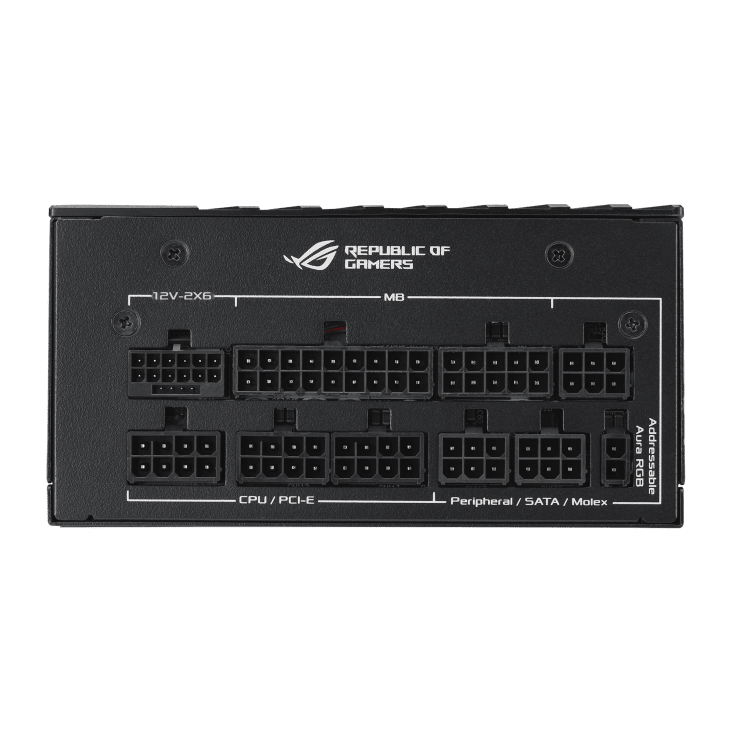

Cable Connectors

MB 24/20-pin x 1
CPU 4+4-pin x 2
PCI-E 16-pin x 1 (both PSU & component side)
PCI-E 8-pin x 3
SATA x 6
PERIPHERAL x 4

Package Contents

Power Cord x 1
Motherboard Power Cable x 1 (450mm)
CPU Cable x 2 (550mm)
PCI-E Gen 5.1 16-pin Cable x 1 (450mm)
PCI-E (16-pin to 8-pin-8-pin) Cable x 1 (450mm)
PCI-E 1-to-1 Cable x 1 (450mm)
SATA 1-to-3 Cable x 2 (300+200+100mm)
Peripheral 1-to-4 Cable x 1 (300+100+100+100mm)
Addressable RGB Cable x 1 (800mm)
User Manual x 1
ATX to SFX adapter bracket x 1

Dimensions

125 x 125 x 63.5 mm

Weight

1.83kg (single PSU)

Cybenetics Noise Level Certification

A

AURA SYNC

Yes

MTBF

>120,000 hrs @ 25°C

0dB Fan Button

No. The product operates in 0dB mode by default. The fan will only spin up when the system reaches a certain load.
