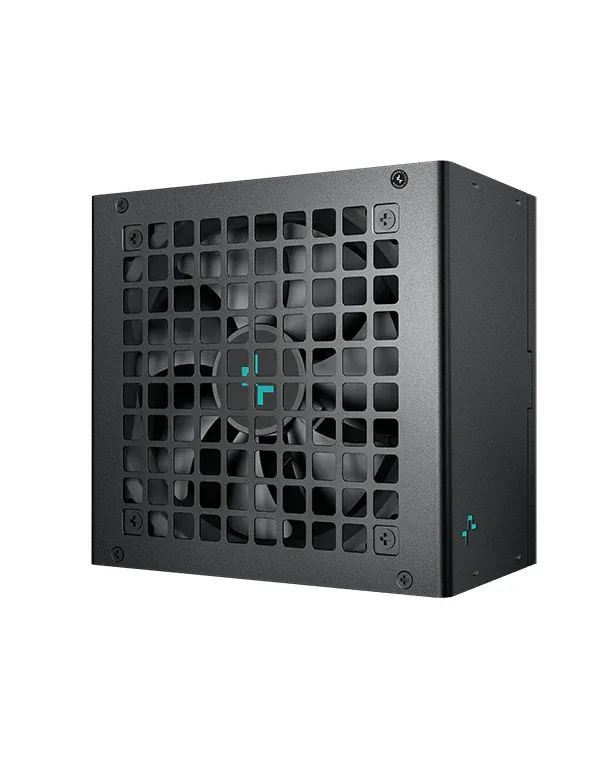

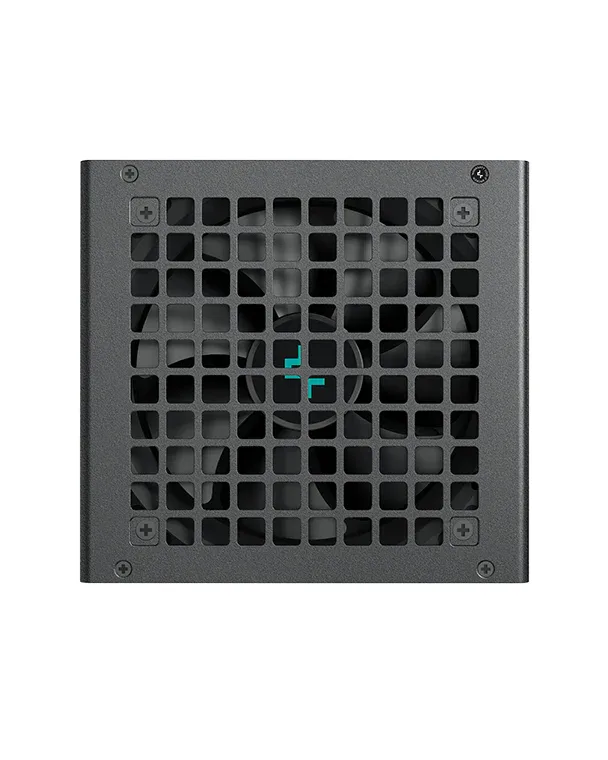

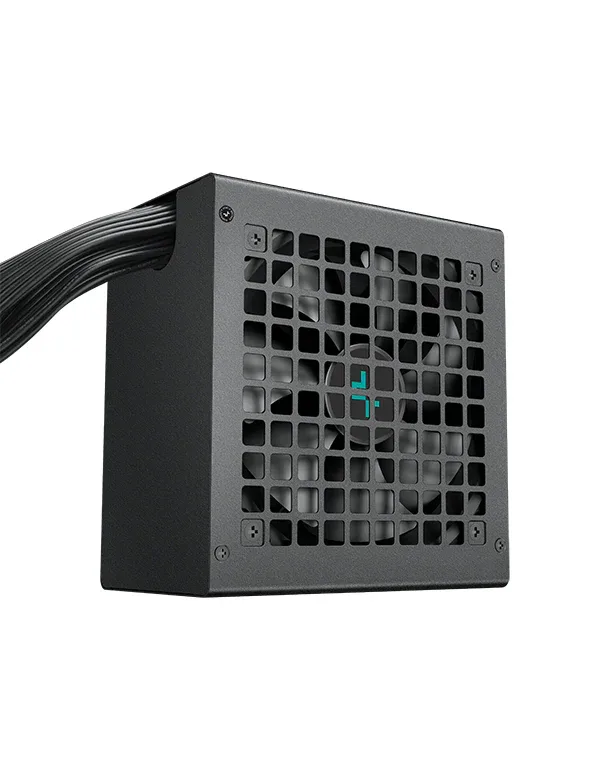

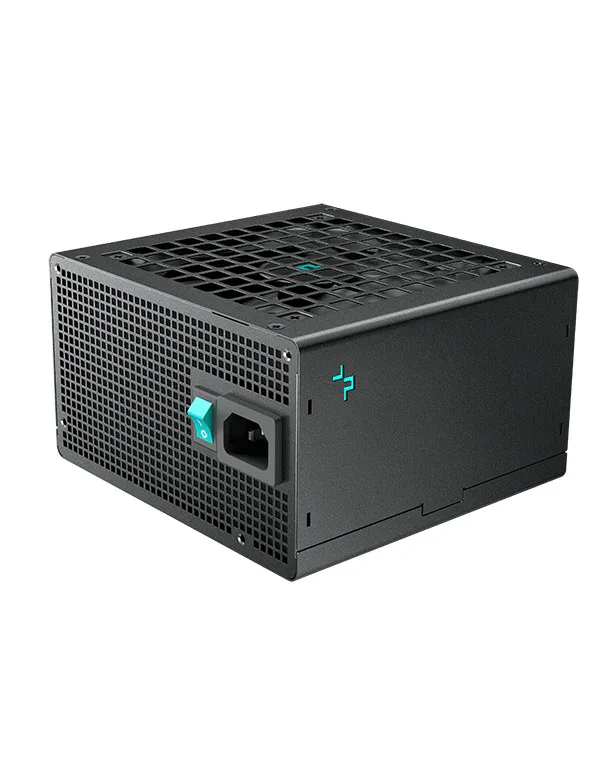

ALIMENTATION DEEPCOOL PL750D 750W BRONZ

Technical Spec

TypeATX12V V3.1Product Dimensions150×140×86mm (W x L x H)Efficiency certification80Plus Bronze/Cybenetics Silver/PPLP Silver/CQC II 级Fan Size120mmFan BearingHYB(Hydro Bearing)TopologyActive PFC+DC to DCCapacitorsChinese Electrolytic CapacitorsPower Good Signal100-150msHold Up Time≥16ms

Efficiency≥85% Under Typical Load(50% Loading)ProtectionOPP/OVP/SCP/OTP/OCP/UVP/SIP/NLOOperation Temperature0 - 40℃RegulatoryCE/FCC/CCC/RCM/EAC/BIS/
CAN ICES-003(B)/NMB-003(B) /TUV-RHErp RegulationErP 2014Environment ProtectionWEEE/中国 RoHS/Triman/P65MTBF100,000 HoursEAN P/N6933412721314 R-PL750D-FC0B-CN-V2
6933412721321 R-PL750D-FC0B-AU-V2
6933412721338 R-PL750D-FC0B-EU-V2
6933412721345 R-PL750D-FC0B-JP-V2
6933412721352 R-PL750D-FC0B-UK-V2
6933412721369 R-PL750D-FC0B-US-V2
6933412721376 R-PL750D-FC0B-IN-V2
6933412721383 R-PL750D-FC0B-WO-V2
6933412721390 R-PL750D-FC0B-BP-V2
