ALIMENTATION ASUS PRIME 850W GOLD FULL MODULAIRE ATX3.1 PCIE GEN5.1
SKU: ASU-ALI-6794
29 000 DA
Disponibilité: En stock
Résumé
ASUS Prime 850W Gold PSU brings efficient and durable power delivery to all-round PCs, and gaming rigs Dual ball fan bearings that can last up to twice as long as sleeve bearing designs. An 80 Plus gold certification is the result of low-ESR capacitors and other premium components. ATX 3.1 compatible: ASUS Prime Gold is compliant with ATX 3.1 guidelines and bundled with a 16-pin PCIe cable that is compatible with PCIe Gen 5.1 graphics cards. 8-year warranty included. GeForce RTX 50 Ready
Description détaillée
Model
AP-850G
Intel Form Factor
ATX12V
PFC Type
Active PFC
ATX Standard
ATX 3.1
Dimensions
150 x 150 x 86 mm
Efficiency
80Plus Gold
MTBF
>120,000 hrs @ 25°C
Protection Features
OPP/OVP/UVP/SCP/OCP/OTP
Hazardous Materials
ROHS
AC Input Range
100-240Vac
DC Output Voltage
+3.3V +5V +12V -12V +5Vsb
Maximum Load
20A20A70.5A 0.3A 2.5A
Combined Load
110W 110W 846W 3.6W 12.5W
Total Output
850W

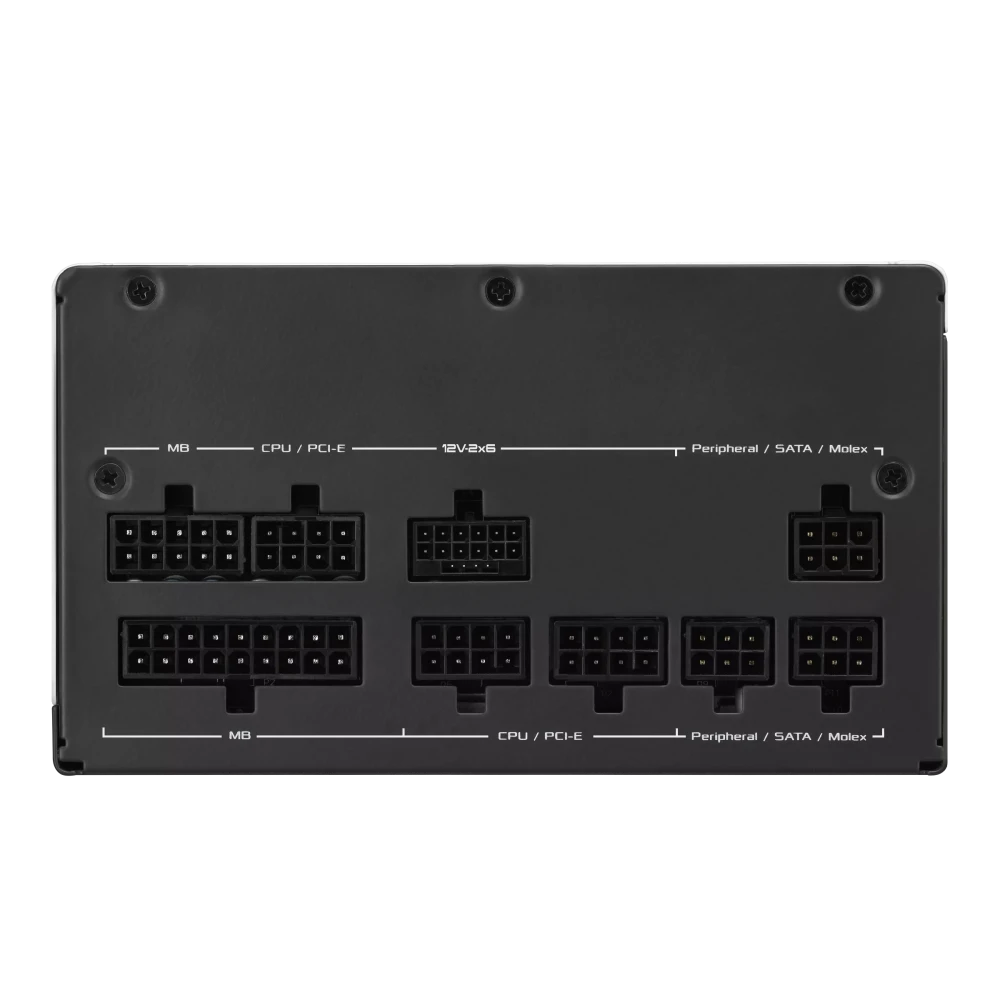

Cable Connectors
MB 24/20-pin x 1
CPU 4+4-pin x 2
PCI-E 16-pin x 1 (both PSU & connector side)
PCI-E 8-pin x 3
SATA x 5
PERIPHERAL x 3

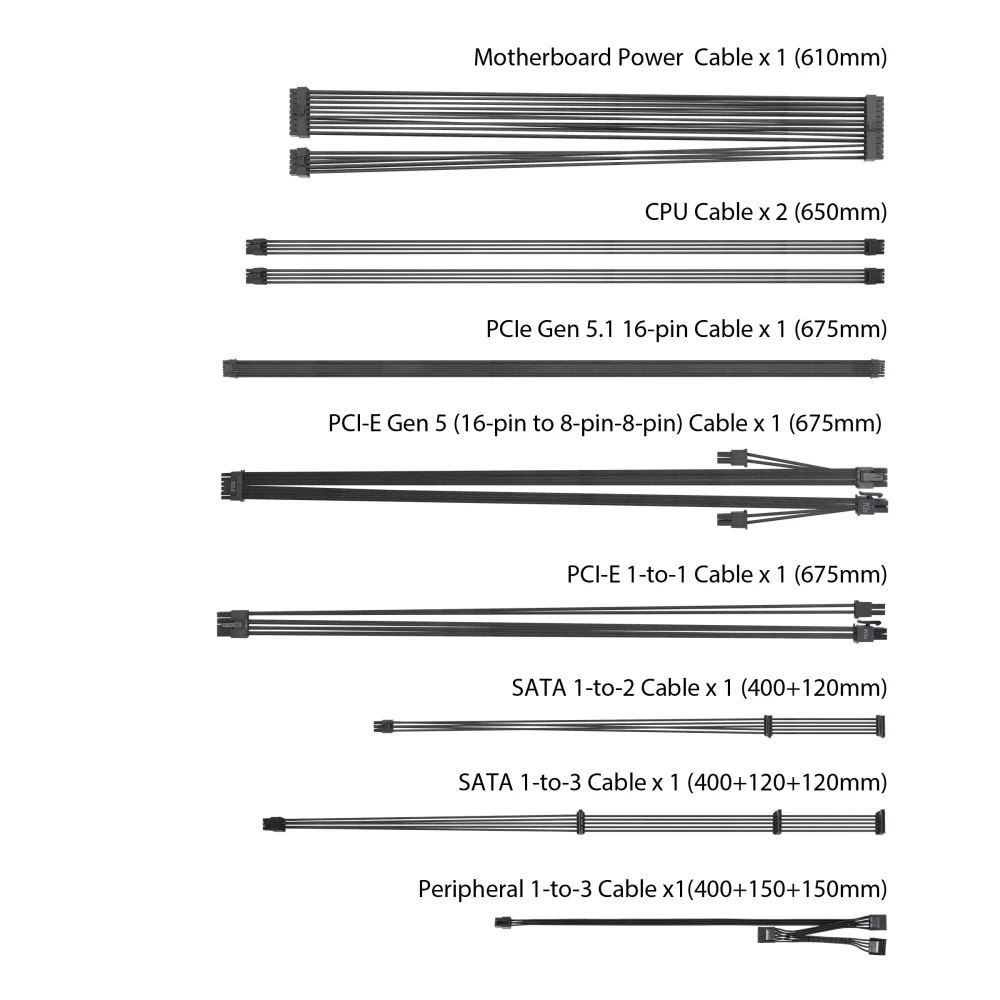

Package Contents
Power Cord x 1
Motherboard Power Cable x 1 (610mm)
CPU Cable x 2 (650mm)
PCI-E Gen 5.1 16-pin Cable x 1 (675mm)
PCI-E (16-pin to 8-pin-8-pin) Cable x1 (675mm)
PCI-E 1-to-1 Cable x 1 (675mm)
SATA 1-to-2 Cable x 1 (400+120mm)
SATA 1-to-3 Cable x 1 (400+120+120mm)
Peripheral 1-to-3 Cable x 1 (400+150+150mm)
User Manual x 1
Weight
1.502 kg (single PSU)
Cybenetics Noise Level Certification
NA
