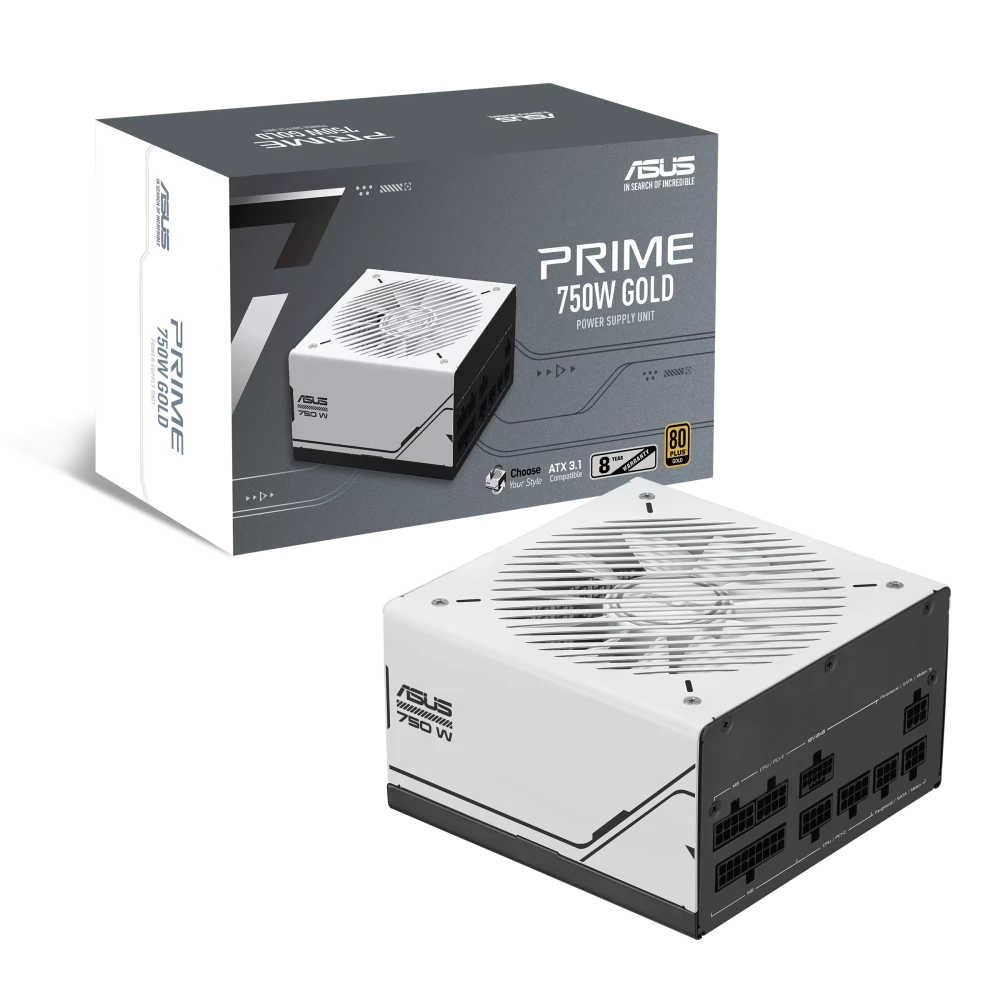

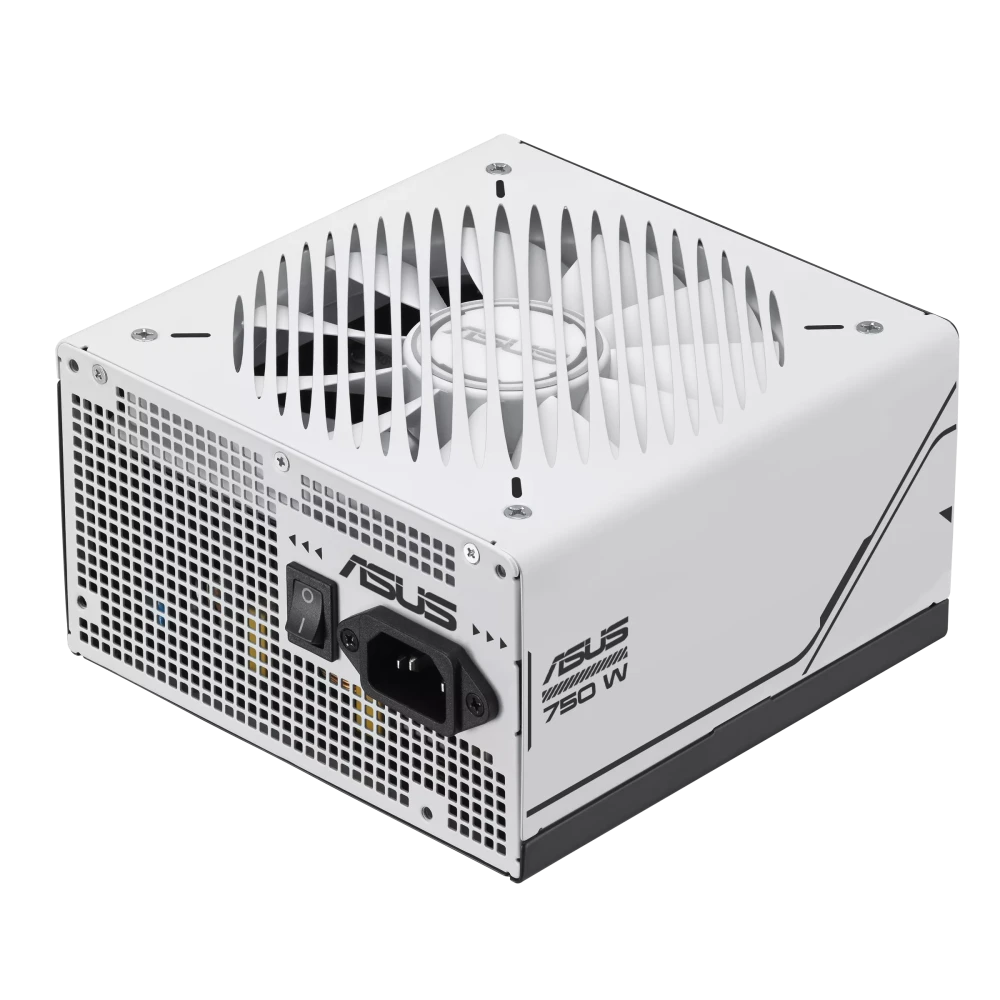

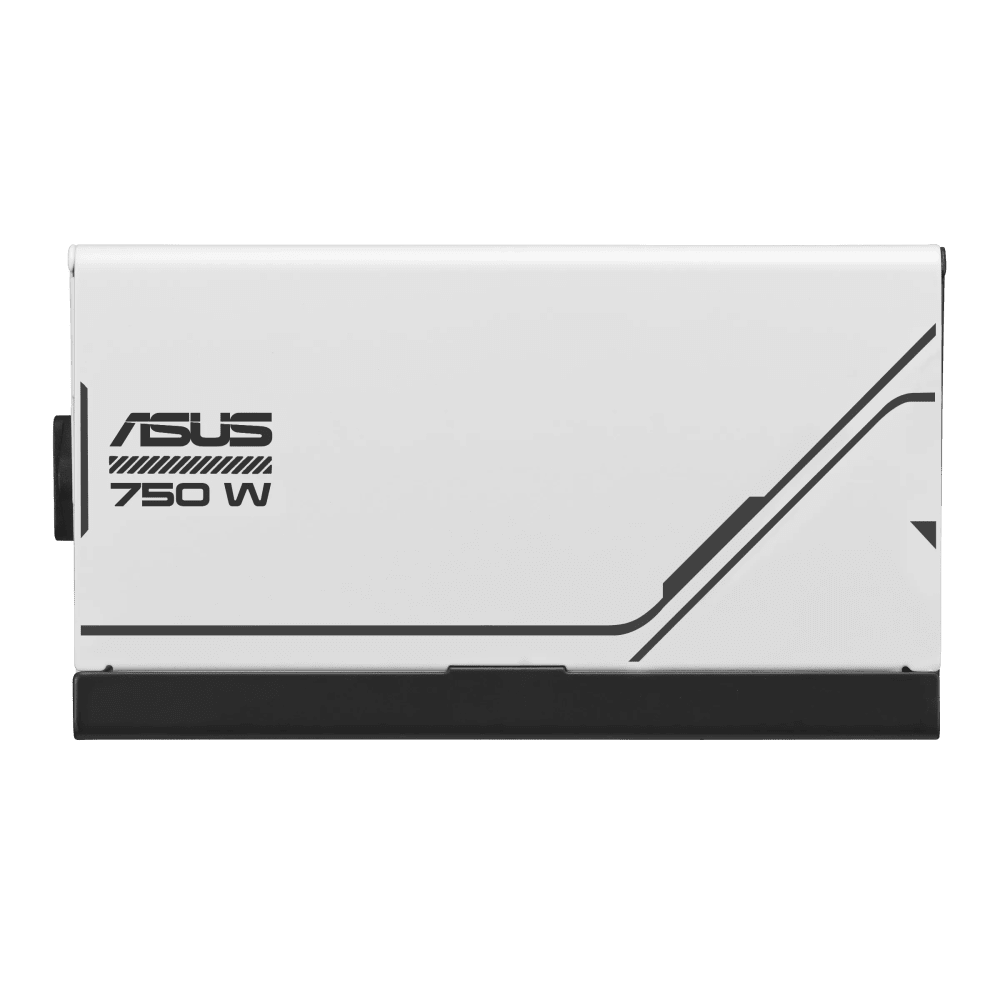

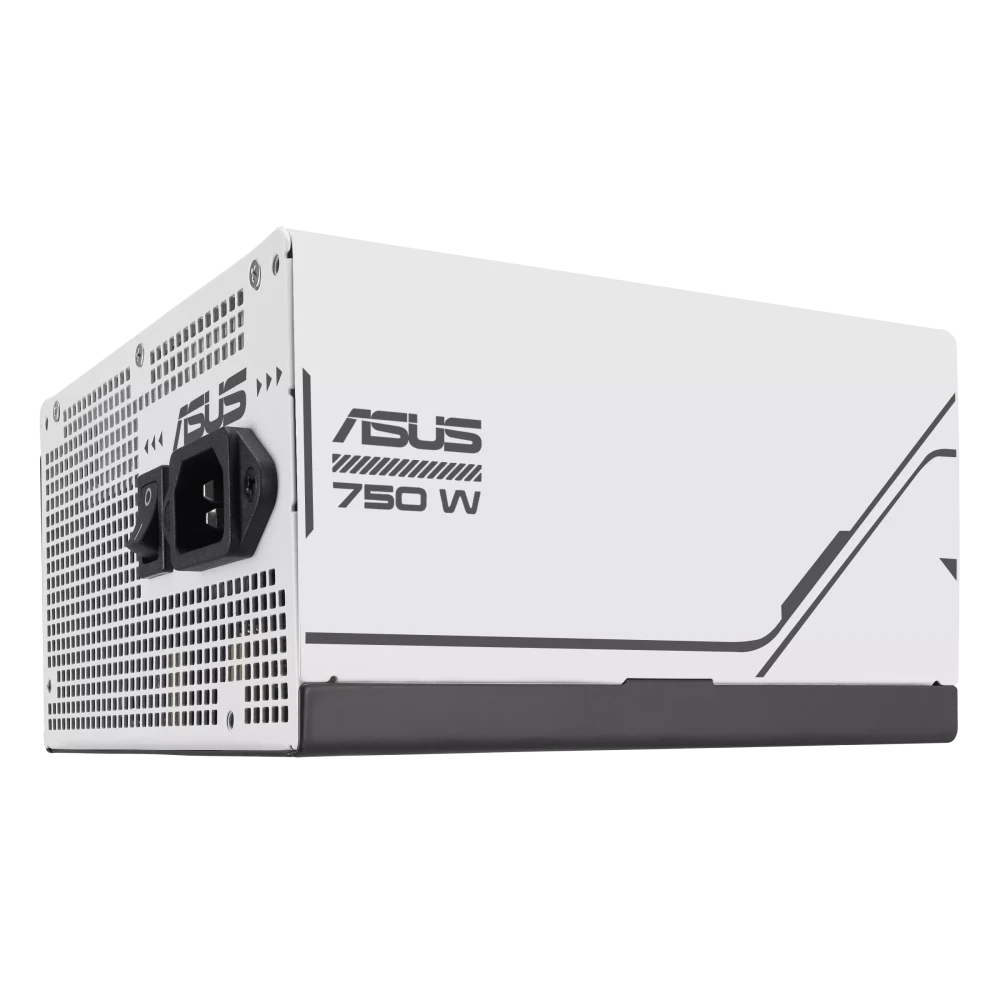

ALIMENTATION ASUS PRIME 750W GOLD FULL MODULAIRE ATX3.1 PCIEGEN 5.1

AP-750G

Intel Form Factor

ATX12V

PFC Type

Active PFC

ATX Standard

ATX 3.1

Dimensions

150 x 150 x 86 mm

Efficience

80Plus Gold

MTBF

>120,000 hrs @ 25°C

Fonctionnalités de protection

OPP/OVP/SCP/OCP/OTP

Matériaux dangereux

ROHS

Plage d'entrée AC

100-240Vac

Voltage en sortie

+3.3V +5V +12V -12V +5Vsb

Charge maximale

20A20A62A 0.3A 2.5A

Charge combinée

110W 110W 744W 3.6W 12.5W

Sortie totale

750 W

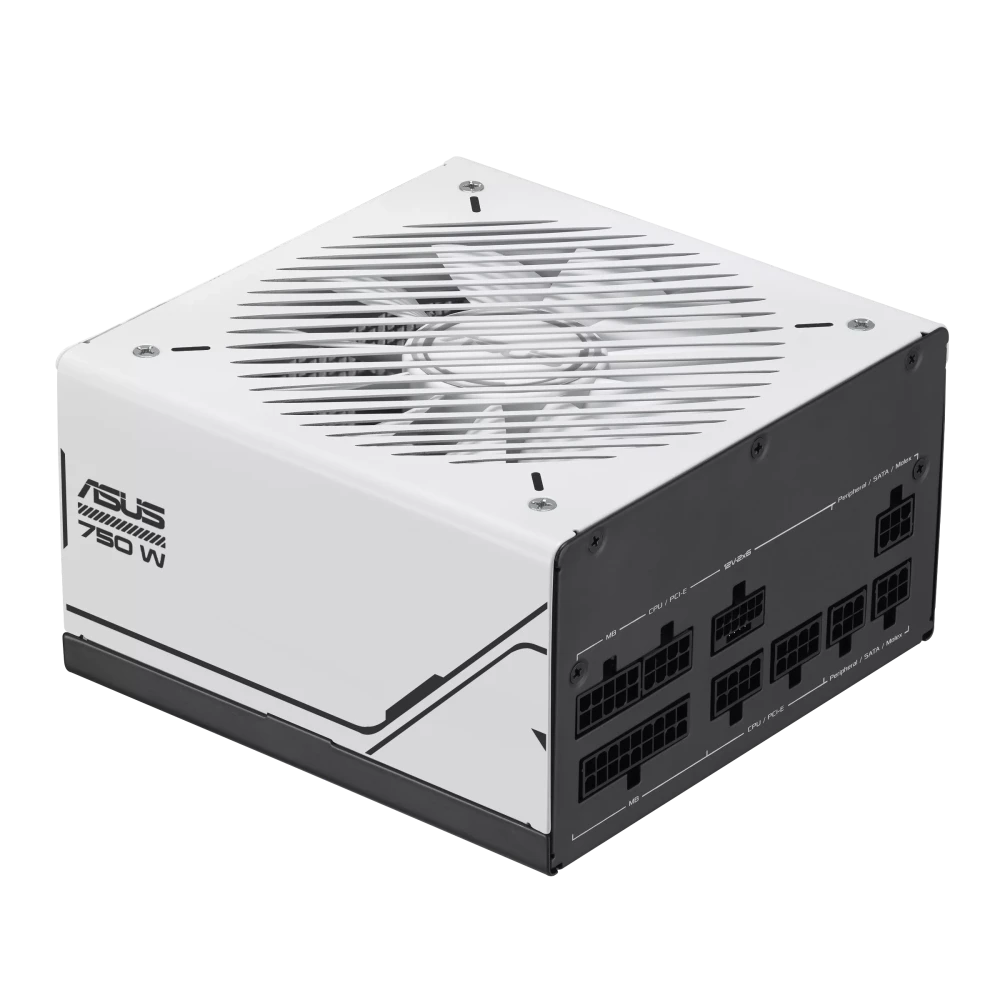

Connecteurs

MB 24/20-pin x 1
CPU 4+4-pin x 2
PCI-E 16-pin x 1 (both PSU & connector side)
PCI-E 8-pin x 3
SATA x 5
PERIPHERAL x 3

Contenu de la boîte

Power Cord x 1
Motherboard Power Cable x 1 (610mm)
CPU Cable x 2 (650mm)
PCI-E Gen 5.1 16-pin Cable x 1 (675mm)
PCI-E (16-pin to 8-pin-8-pin) Cable x1 (675mm)
PCI-E 1-to-1 Cable x 1 (675mm)
SATA 1-to-2 Cable x 1 (400+120mm)
SATA 1-to-3 Cable x 1 (400+120+120mm)
Peripheral 1-to-3 Cable x 1 (400+150+150mm)
User Manual x 1

Poids

1.466 kg (single PSU)
