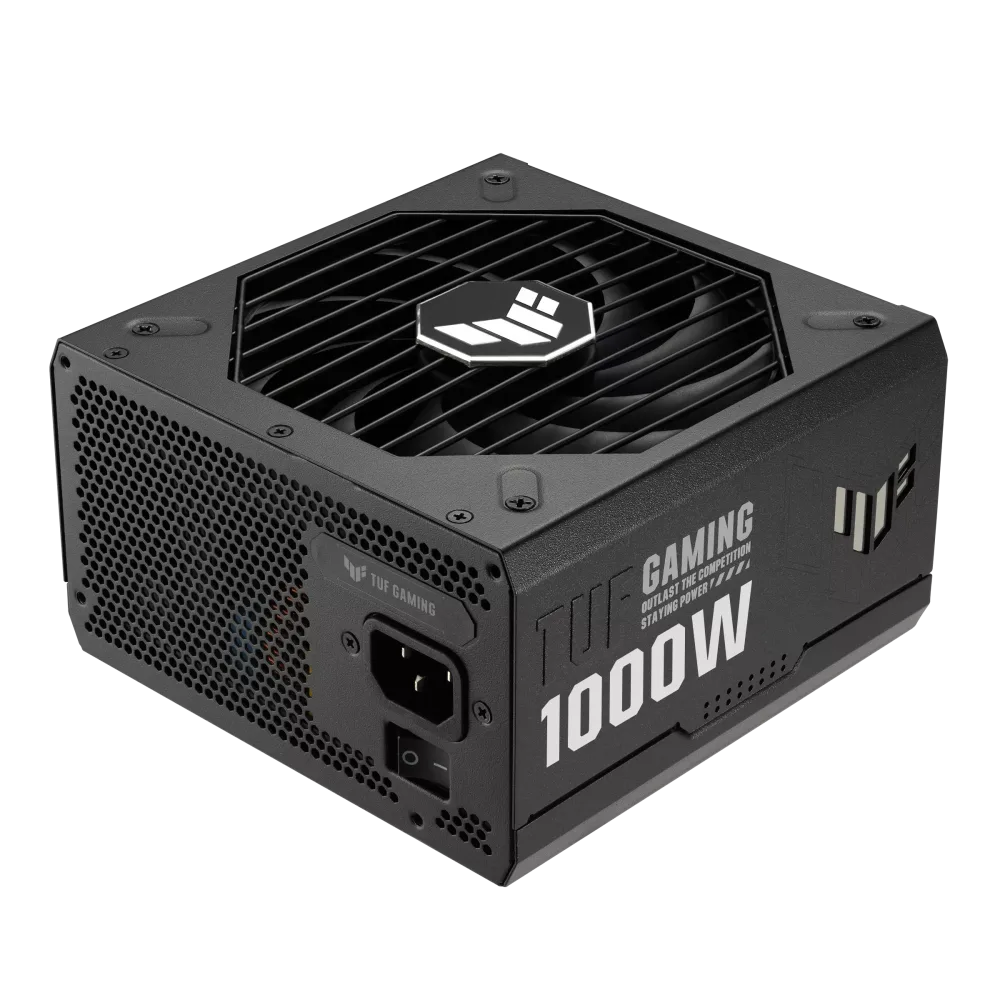

ALIMENTATION TUF Gaming 1000W Gold

Model

TUF Gaming 1000W Gold

Intel Form Factor

ATX12V

PFC Type

Active PFC

ATX Standard

ATX 3.1

Dimensions

150 x 150 x 86 mm

Efficience

80Plus Gold

MTBF

>120,000 hrs @ 40°C

Fonctionnalités de protection

OPP/OVP/SCP/OCP/OTP

Matériaux dangereux

ROHS

Plage d'entrée AC

100-240Vac

Voltage en sortie

+3.3V +5V +12V -12V +5Vsb

Charge maximale

25A25A83.3A 0.8A 3A

Charge combinée

130W 130W 1000W 9.6W 15W

Sortie totale

1000W

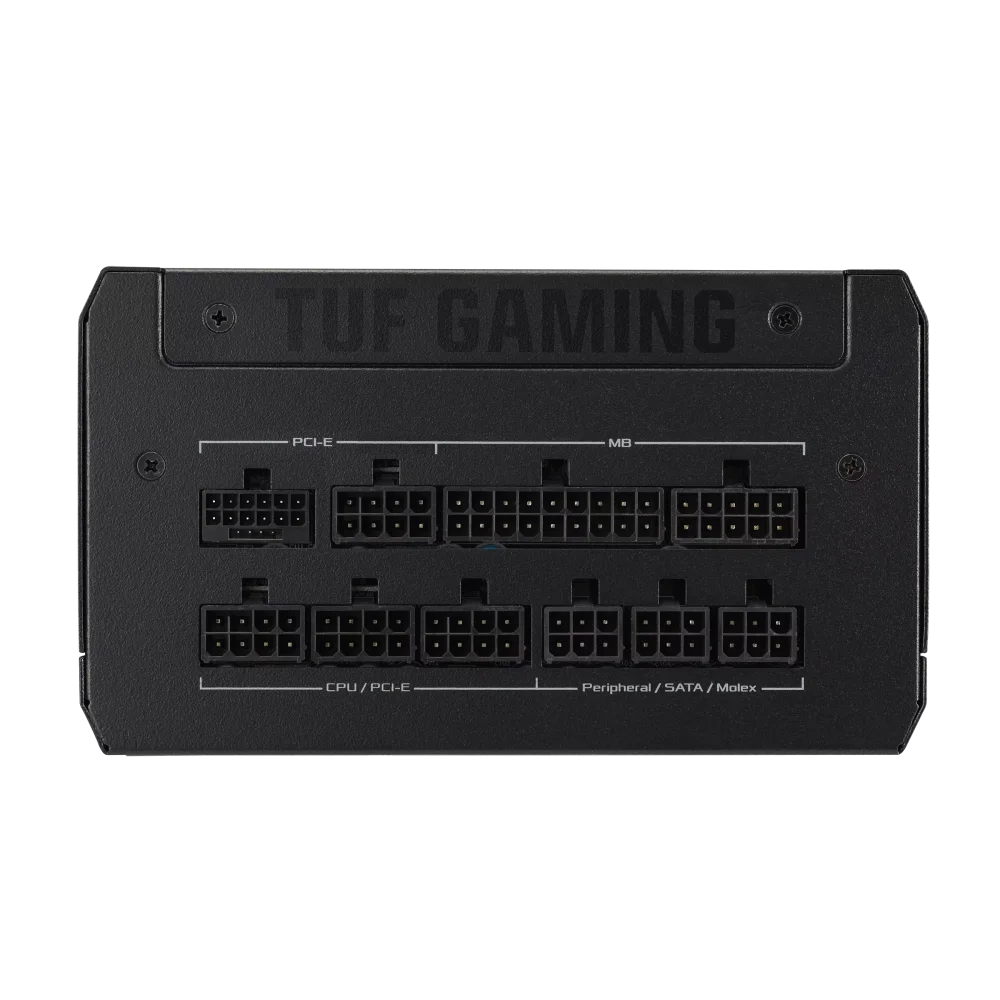

Connecteurs

MB 24/20-pin x 1
CPU 4+4-pin x 2
PCI-E 16-pin x 1 (both PSU & component side)
PCI-E 8-pin x 4
SATA x 5
PERIPHERAL x 4

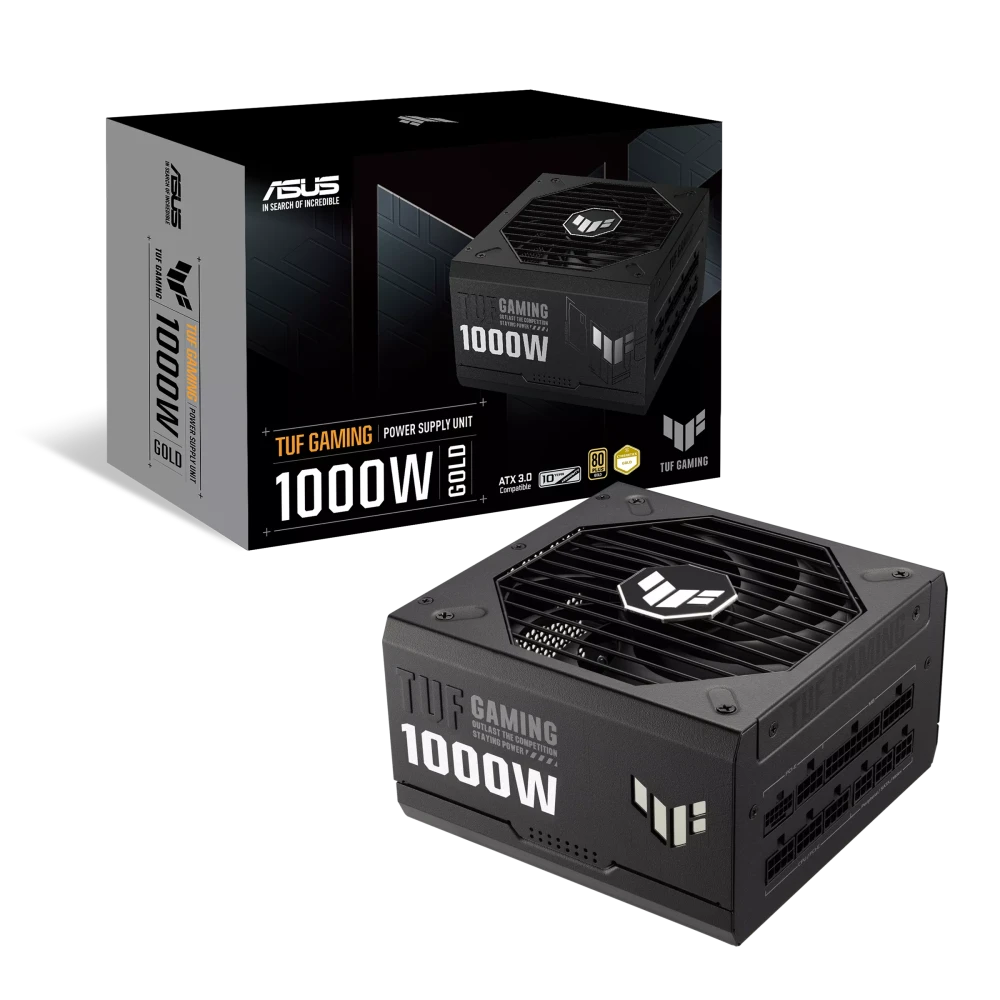

Contenu de la boîte

Power Cord x 1
Motherboard Power Cable x 1 (610mm)
CPU Cable x 2 (650mm)
PCI-E Gen 5.1 16-pin Cable x 1 (675mm)
PCI-E (16-pin to 8-pin-8-pin) Cable x 1 (675mm)
PCI-E 1-to-1 Cable x 2 (675mm)
SATA 1-to-2 Cable x 1 (400+120mm)
SATA 1-to-3 Cable x 1 (400+120+120mm)
Peripheral 1-to-4 Cable x 1 (400+150+150+150mm)
TUF Gaming Cable Tie x 3
User Manual x 1

Poids

2.48kg (single PSU)

Cybenetics Noise Level Certification

NA

0dB Technology

Supported. The fan shuts off entirely when the PSU is under certain load
